15 PSI-A-PRIME-MV
SENSOR 15PSIA 0.19"" .09VManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19"" (4.8mm) Tube 0 mV ~ 90 mV (12V) 6-SIP Module
Additional Information
Series: ACPCRoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.3% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 16V |
| Port Size | Male - 0.19"" (4.8mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 60PSI (413.69kPa) |
Request a Quote
Clients Also Buy

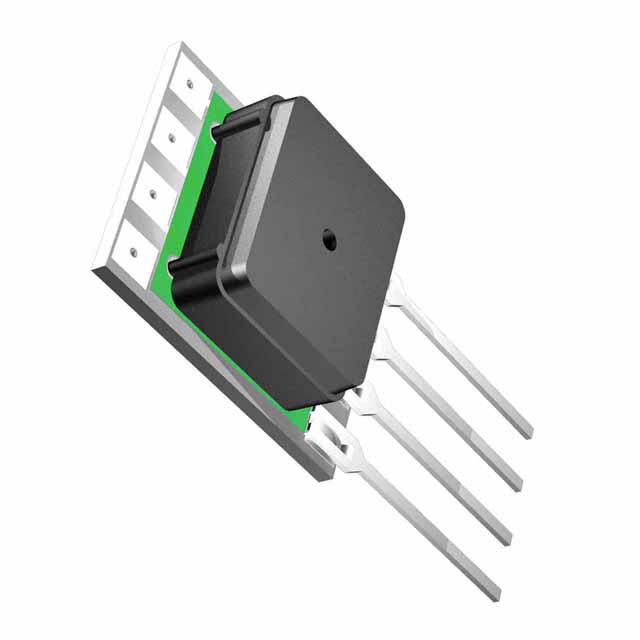

0.3 PSI-D-CGRADE-MINI
SENSOR 0.3PSID 0.18"" .02V

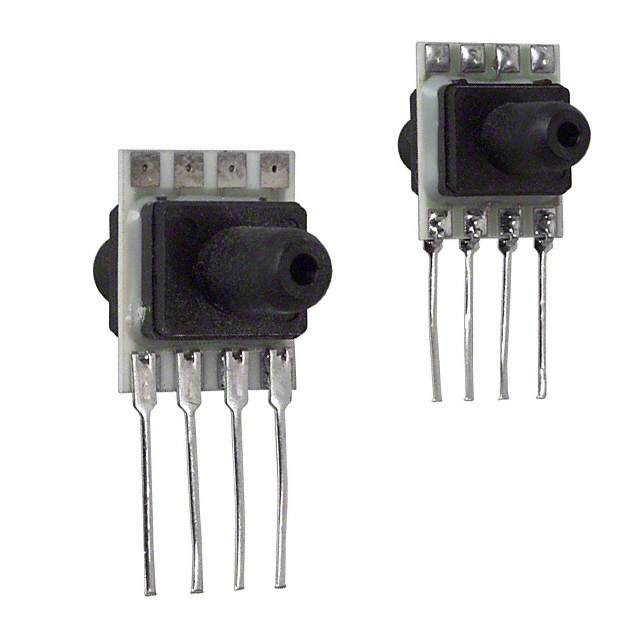

0.3 PSI-D-HGRADE-MINI
