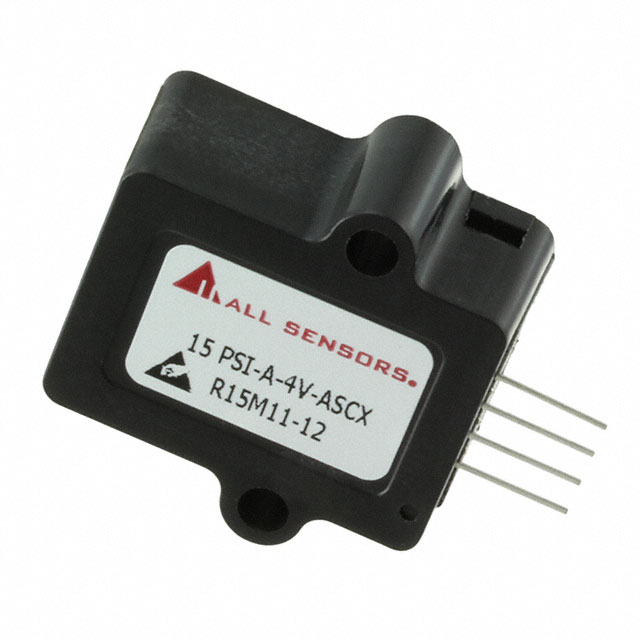

15 PSI-A-4V-ASCX
SENSOR 15PSIA 0.19"" 4.75V 4SIPManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19"" (4.8mm) Tube 0.25 V ~ 4.75 V 4-SIP
Additional Information
Series: ASCXRoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0.25 V ~ 4.75 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.5% |
| Operating Temperature | -25°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.19"" (4.8mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
Request a Quote
Clients Also Buy

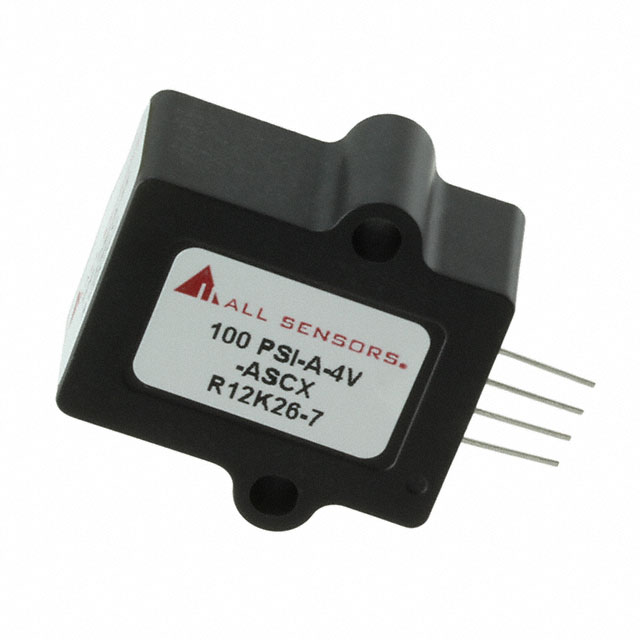

100 PSI-A-4V-ASCX
SENSOR 100PSIA 0.19"" 4.75V 4SIP

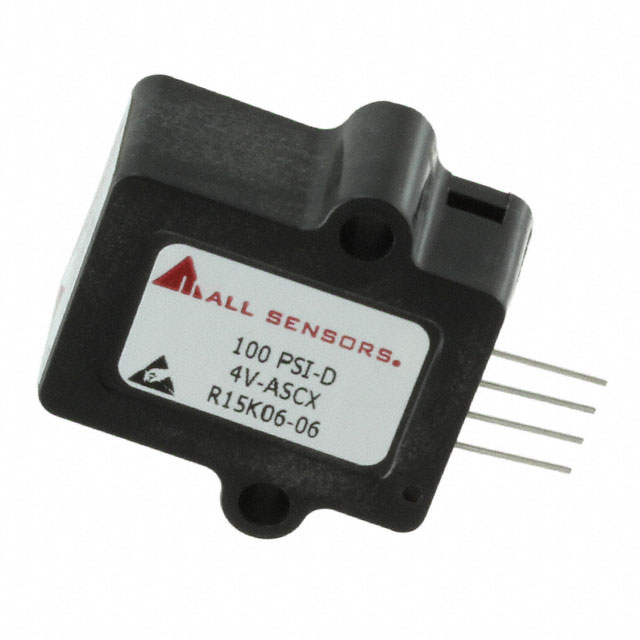

100 PSI-D-4V-ASCX
SENSOR 100PSID 0.19"" 4.75V 4SIP

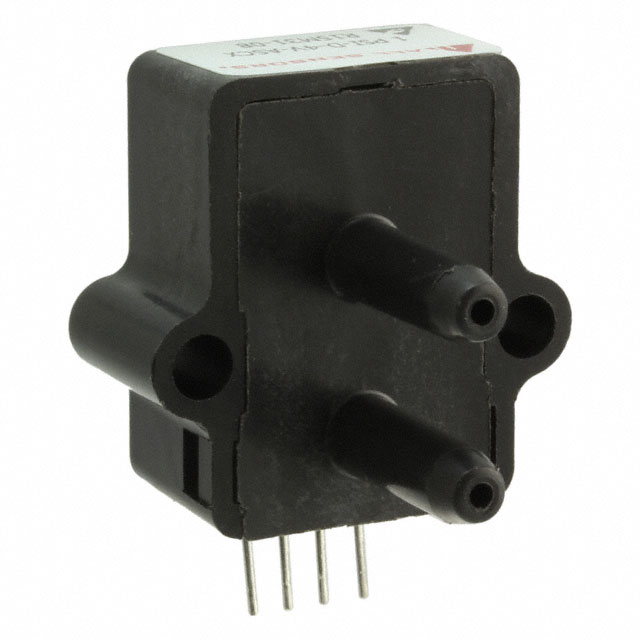

1 PSI-D-4V-ASCX
