10 INCH-D1-BASIC
SENSOR 0.36PSID 0.08"" .03VManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.36PSI (2.49kPa) Differential Male - 0.08"" (2.13mm) Tube, Dual 0 mV ~ 30 mV (4.5V) 4-SIP Module
Additional Information
Series: ADUXRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 30 mV (4.5V) |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 6V |
| Port Size | Male - 0.08"" (2.13mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | - |
Request a Quote
Clients Also Buy

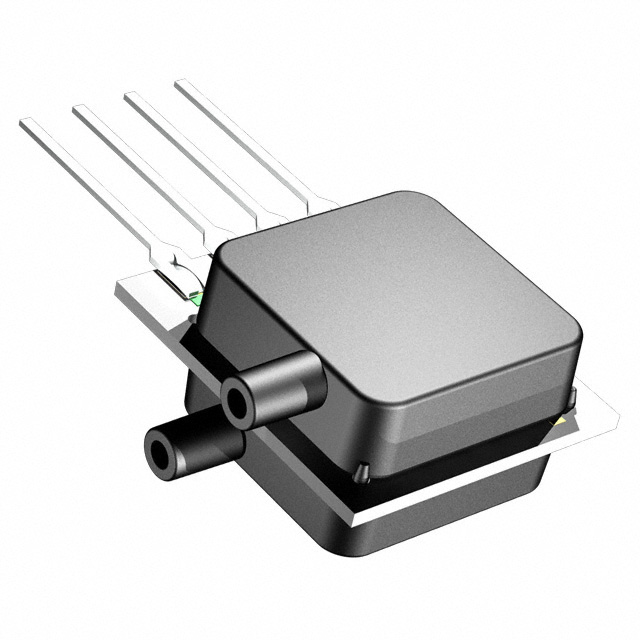

1 INCH-D1-BASIC
SENSOR 0.04PSID 0.08"" .007V

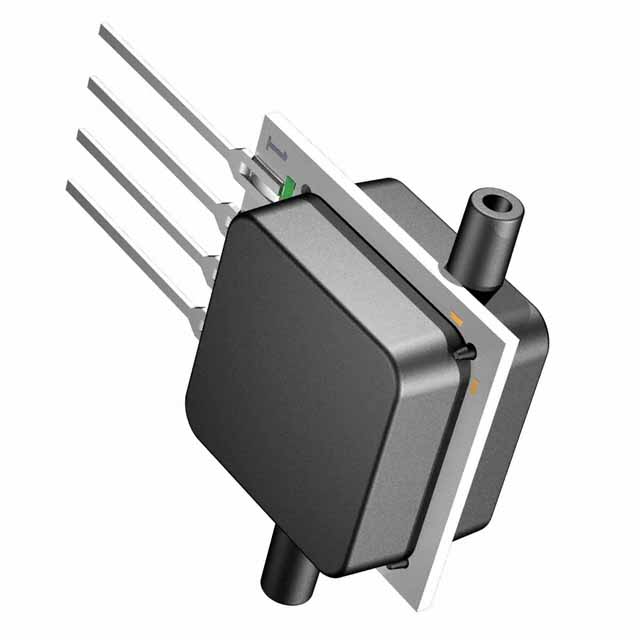

1 INCH-D2-BASIC
SENSOR 0.04PSID 0.08"" .007V

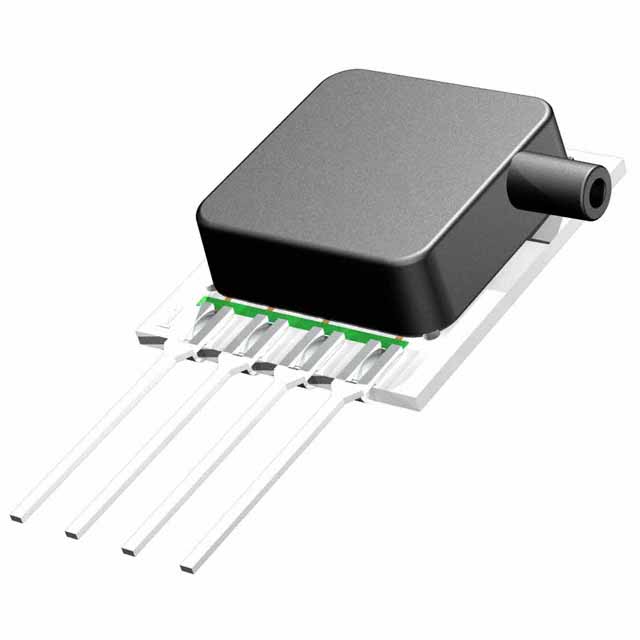

1 INCH-G-BASIC
