MS3476L14-18SW
MATRIX 26482 IIManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More

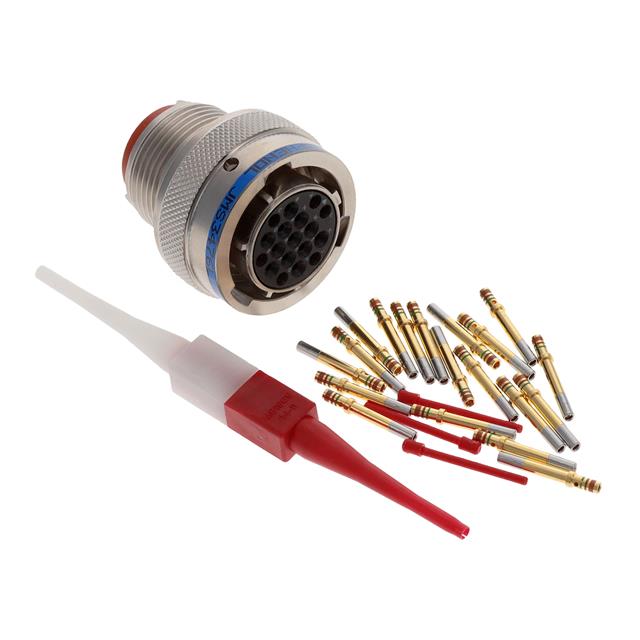

18 Position Circular Connector Plug, Female Sockets Crimp
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut |
| Packaging | Box |
| Connector Type | Plug, Female Sockets |
| Color | Silver |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 18 |
| Orientation | W |
| Shell Size - Insert | 14-18 |
| Operating Temperature | -55°C ~ 200°C |
| Fastening Type | Bayonet Lock |
| Termination | Crimp |
| Ingress Protection | Fluid Resistant |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Grade | Military |
| Shell Material | Aluminum Alloy |
| Shell Finish | Electroless Nickel |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series II |
Request a Quote
