MS3456W20-27S
CONN PLUG FMALE 14POS GOLD CRIMPManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More

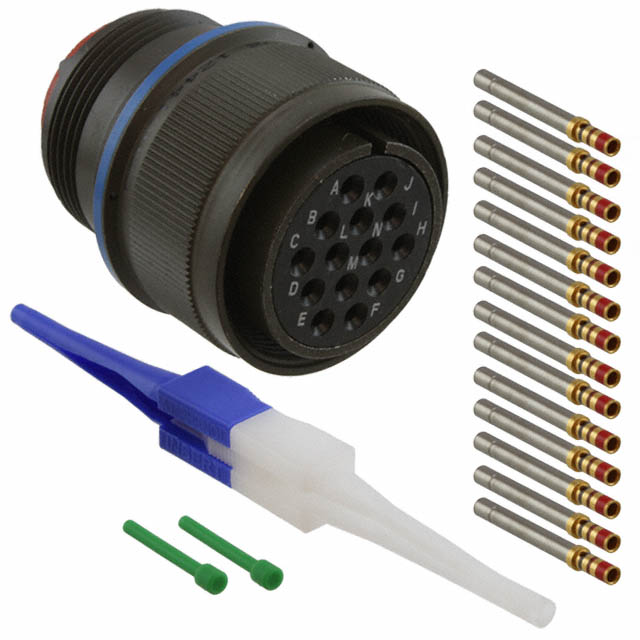

14 (Power) Position Circular Connector Plug, Female Sockets Crimp
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut |
| Packaging | Bulk |
| Connector Type | Plug, Female Sockets |
| Color | Olive Drab |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 14 (Power) |
| Orientation | N (Normal) |
| Shell Size - Insert | 20-27 |
| Operating Temperature | -55°C ~ 175°C |
| Fastening Type | Threaded |
| Termination | Crimp |
| Ingress Protection | Fluid Resistant |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Grade | Military |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
