MS27473E14A5S
PLUGManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More

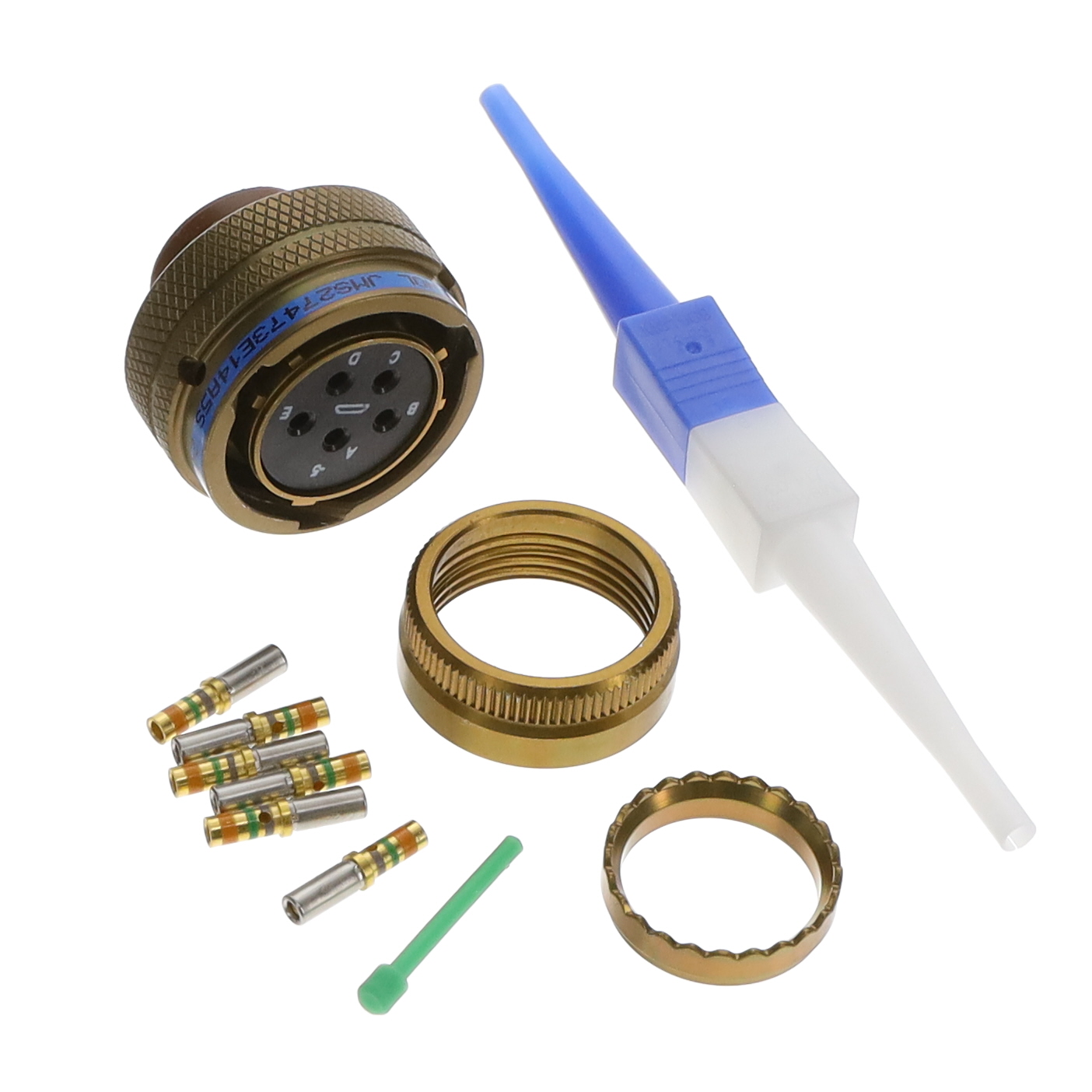

5 Position Circular Connector Plug, Female Sockets Crimp
Additional Information
Series: JTRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut |
| Packaging | Bulk |
| Connector Type | Plug, Female Sockets |
| Color | - |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 5 |
| Orientation | N (Normal) |
| Shell Size - Insert | 14-5 |
| Operating Temperature | -65°C ~ 200°C |
| Fastening Type | Bayonet Lock |
| Termination | Crimp |
| Ingress Protection | Environment Resistant |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Aluminum |
| Shell Finish | Cadmium over Nickel |
| Primary Material | Metal |
