M8372396W2212N
M83723/96W2212N3ALUMINUMManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More

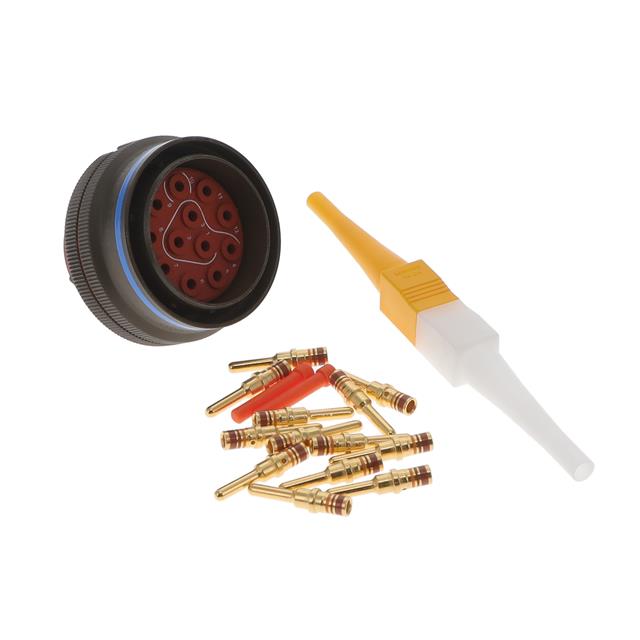

12 (Power) Position Circular Connector Plug, Male Pins Crimp
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut, Self Locking |
| Packaging | Box |
| Connector Type | Plug, Male Pins |
| Color | Olive Drab |
| Voltage Rating | 600VAC, 850VDC |
| Current Rating (Amps) | 23A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 12 (Power) |
| Orientation | N (Normal) |
| Shell Size - Insert | 22-12 |
| Operating Temperature | -65°C ~ 175°C |
| Fastening Type | Threaded |
| Termination | Crimp |
| Ingress Protection | Environment Resistant |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | - |
| Grade | Military |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-83723 Series III |
