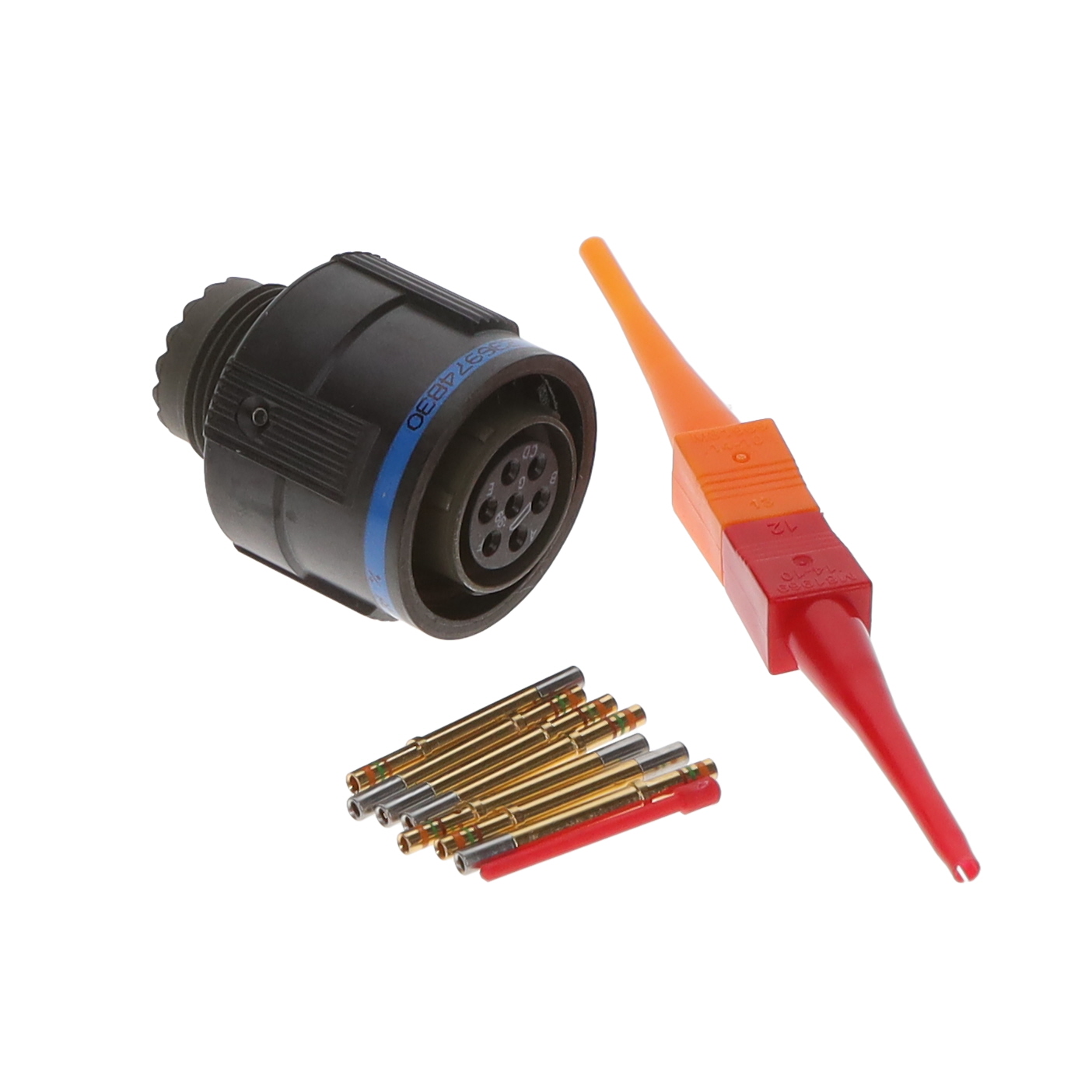

D38999/26JB99SN
MS COMPOSITE PLUGSManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More
7 Position Circular Connector Plug, Female Sockets Crimp
Additional Information
Series: Tri-Start™ TVRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Coupling Nut |
| Packaging | Box |
| Connector Type | Plug, Female Sockets |
| Color | Olive Drab |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 7 |
| Orientation | N (Normal) |
| Shell Size - Insert | 11-99 |
| Operating Temperature | -65°C ~ 175°C |
| Fastening Type | Threaded |
| Termination | Crimp |
| Ingress Protection | Environment Resistant |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | B |
| Contact Finish - Mating | Gold |
| Grade | Military |
| Shell Material | Composite |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Composite |
| Qualification | MIL-DTL-38999 Series III |
Request a Quote
