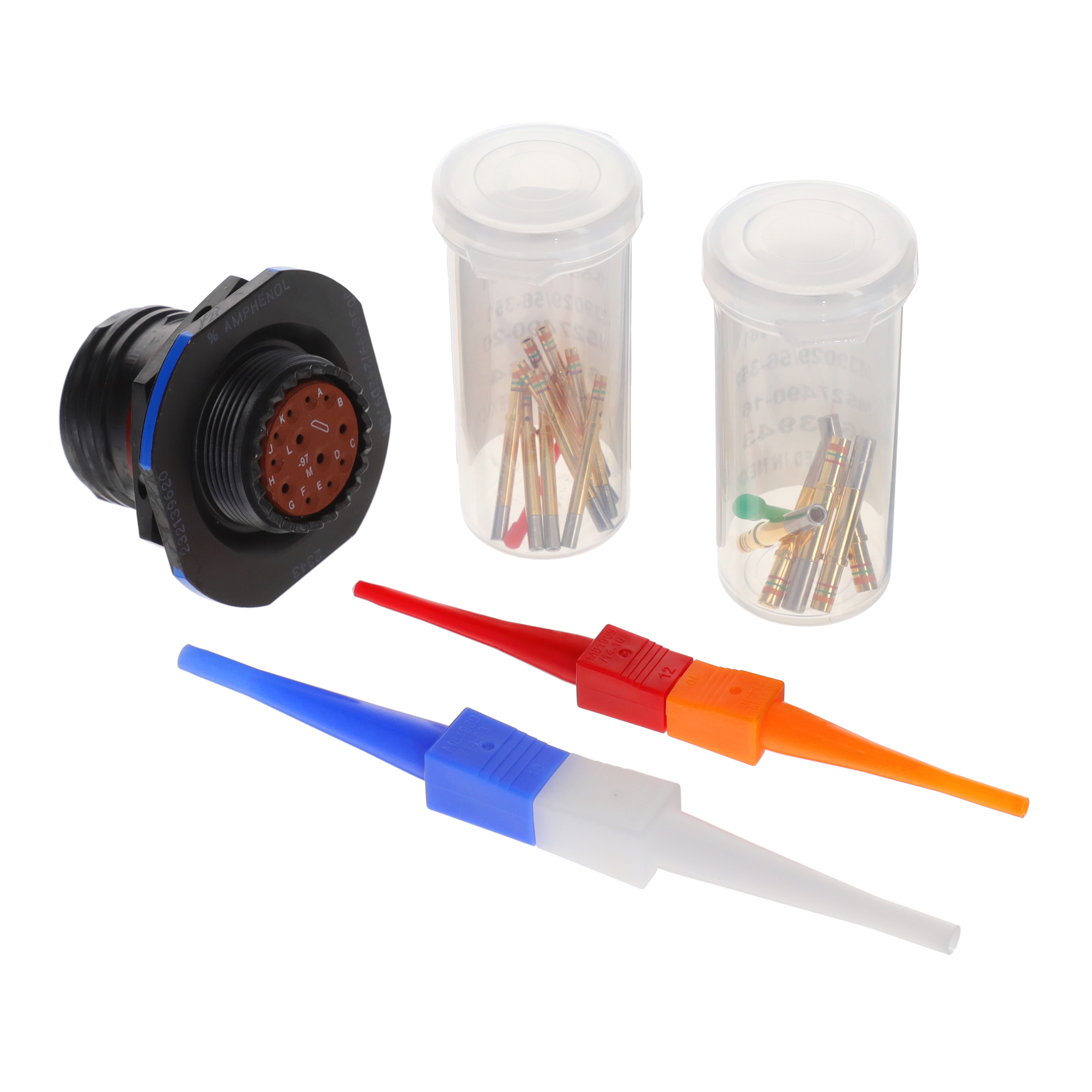

D38999/24ZD97SN
JAM NUT RECEPTACLEManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More
12 Position Circular Connector Receptacle, Female Sockets Crimp
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle, Female Sockets |
| Color | Black |
| Voltage Rating | - |
| Current Rating (Amps) | 7.5A, 13A |
| Mounting Type | Panel Mount |
| Shielding | Shielded |
| Number of Positions | 12 |
| Orientation | N (Normal) |
| Shell Size - Insert | 15-97 |
| Operating Temperature | -65°C ~ 175°C |
| Fastening Type | Threaded |
| Termination | Crimp |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shell Size, MIL | D |
| Contact Finish - Mating | Gold |
| Grade | Military |
| Shell Material | Aluminum |
| Shell Finish | Black Zinc Nickel |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
