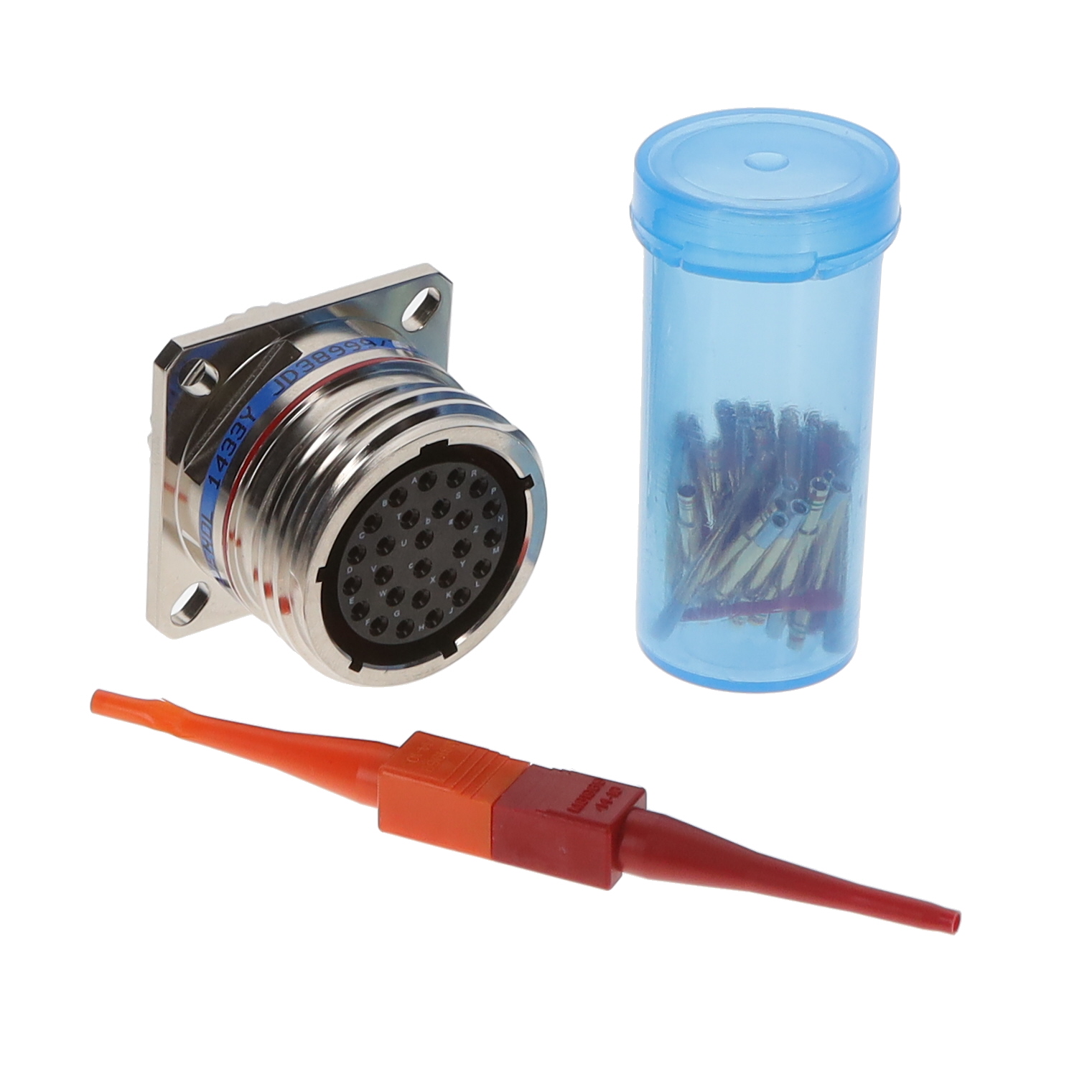

D38999/20SE26SN
WALL MOUNT RECEPTACLEManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More
26 Position Circular Connector Receptacle, Female Sockets Crimp
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Firewall Usage |
| Packaging | Bag |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | - |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Panel Mount |
| Shielding | Shielded |
| Number of Positions | 26 |
| Orientation | N (Normal) |
| Shell Size - Insert | 17-26 |
| Operating Temperature | -65°C ~ 200°C |
| Fastening Type | Threaded |
| Termination | Crimp |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Flange |
| Shell Size, MIL | E |
| Contact Finish - Mating | Gold |
| Grade | Military |
| Shell Material | Stainless Steel |
| Shell Finish | Nickel |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
