2M805-001-16NF15-37SA
2M805 PLUGManufacturer: Amphenol Aerospace Operations
Categories: Circular Connector Assemblies
Quality Control: Learn More

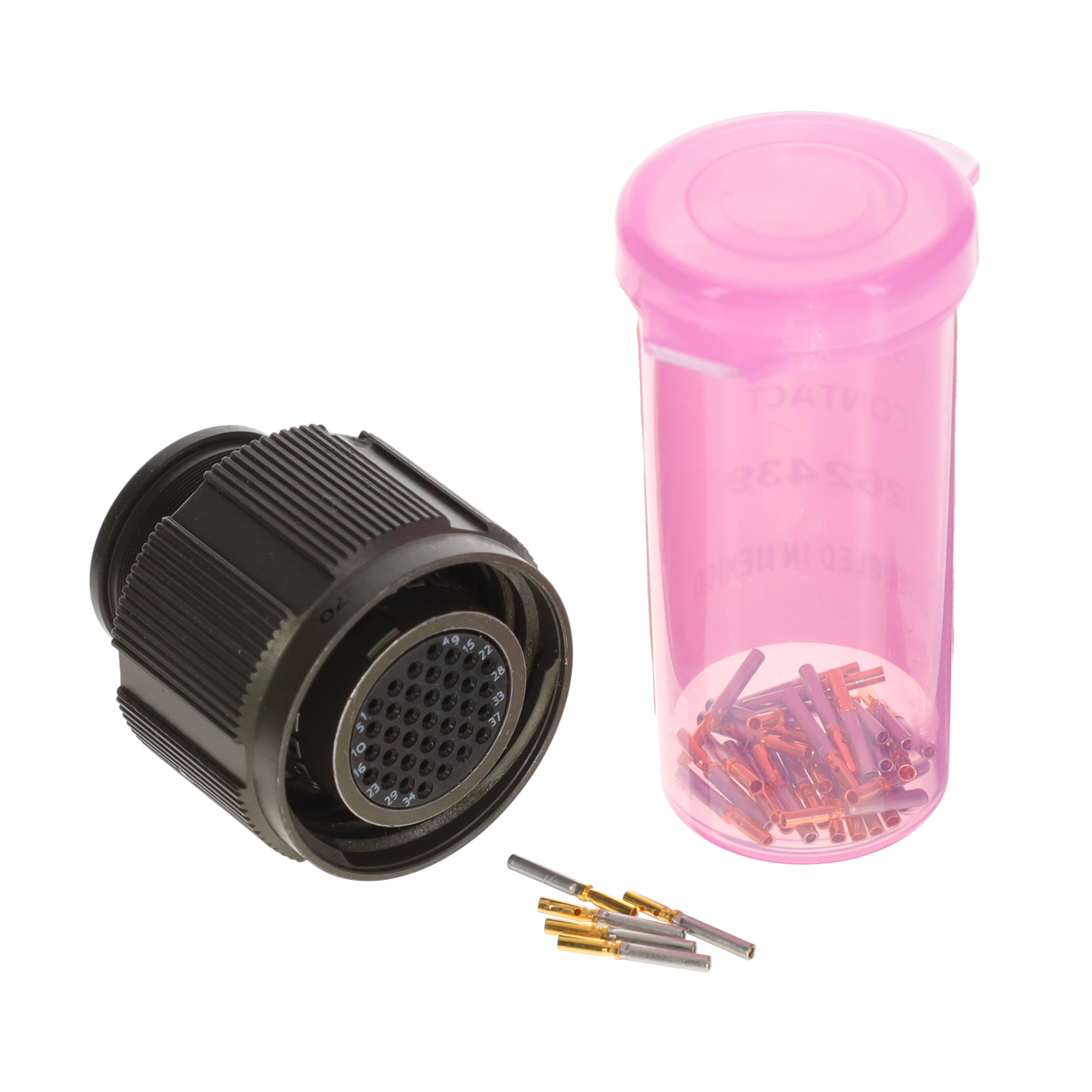

37 Position Circular Connector Plug, Female Sockets Crimp
Additional Information
Series: 2MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut, Self Locking |
| Packaging | Bulk |
| Connector Type | Plug, Female Sockets |
| Color | Olive Drab |
| Voltage Rating | - |
| Current Rating (Amps) | 5A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 37 |
| Orientation | A |
| Shell Size - Insert | 15-37 |
| Operating Temperature | -65°C ~ 175°C |
| Fastening Type | Threaded |
| Termination | Crimp |
| Ingress Protection | Environment Resistant |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Metal |
