NPB-102-I-0126A

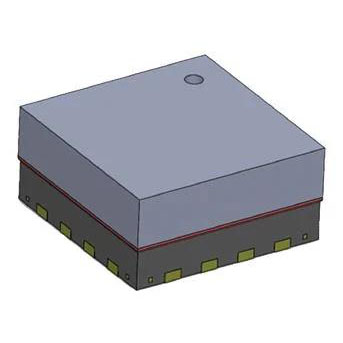

BAROMETRIC PRESSURE SENSOR 26-12Manufacturer: Amphenol Advanced Sensors
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) Absolute 18b 16-QFN Exposed Pad
Additional Information
Series: NPB 102RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-QFN Exposed Pad |
| Output Type | I2C |
| Mounting Type | Surface Mount, Wettable Flank |
| Output | 18b |
| Operating Pressure | 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) |
| Pressure Type | Absolute |
| Accuracy | ±3% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | - |
| Voltage - Supply | 1.7V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 16-QFN (4x4) |
| Port Style | No Port |
| Maximum Pressure | 58.02PSI (400kPa) |
