BL-2835R650-20
LED RED CLEAR 2PLCC SMDManufacturer: American Bright Optoelectronics Corporation
Categories: LED Indication - Discrete
Quality Control: Learn More

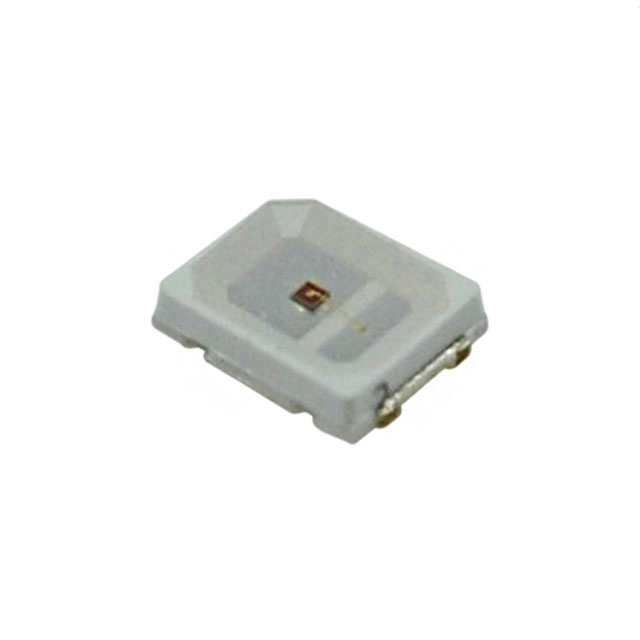

American Bright Optoelectronics Corporation BL-2835R650-20 is a red LED housed in a 1411 (3528 Metric) package, also known as 2-PLCC. This surface-mount component offers a typical forward voltage of 2.05V at a test current of 150mA, producing a luminous intensity of 3200mcd with a peak wavelength of 655nm. The clear, colorless lens features an oval shape with a flat top and a wide 120° viewing angle. This LED is supplied on tape and reel for efficient automated assembly. Its specifications make it suitable for various indication applications across industries such as industrial automation, automotive, and consumer electronics. The dimensions of the component are 3.50mm L x 2.80mm W with a maximum height of 0.75mm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1411 (3528 Metric) |
| Color | Red |
| Size / Dimension | 3.50mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 3200mcd |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | Colorless |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Height (Max) | 0.75mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Oval with Flat Top |
| Lens Size | - |
