AB-GES-S04124W30NN1
LED ENG AB-GES WH SQUARE 3000KManufacturer: American Bright Optoelectronics Corporation
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

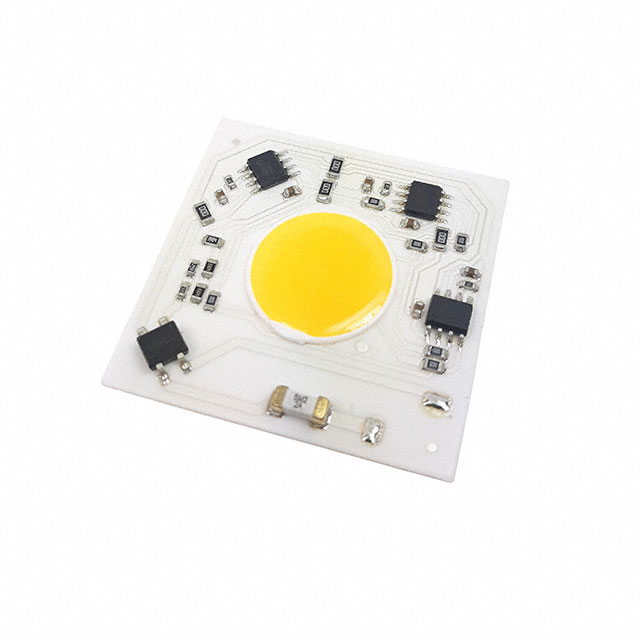

American Bright Optoelectronics Corporation's AB-GES series LED Engine, part number AB-GES-S04124W30NN1, is a warm white square LED module designed for high-performance lighting applications. This component features a 3000K color temperature, specified within a 3-Step MacAdam ellipse for consistent color uniformity. The LED Engine delivers a typical luminous flux of 2100 lumens at 25°C, with a Color Rendering Index (CRI) of 80. Operating at 120VAC, it is suitable for general illumination, architectural lighting, and commercial lighting systems requiring a diffused, square light source. The module has a compact footprint with dimensions of 40.00mm L x 40.00mm W and a height of 1.60mm, featuring a flat lens type. The Light Emitting Surface (LES) diameter is 18.80mm. This component is supplied in trays.
Additional Information
Series: AB-GESRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 40.00mm L x 40.00mm W |
| Type | LED Engine |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 120VAC |
| Height | 1.60mm |
| Current - Test | - |
| Viewing Angle | - |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 18.80mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2100lm (Typ) |
