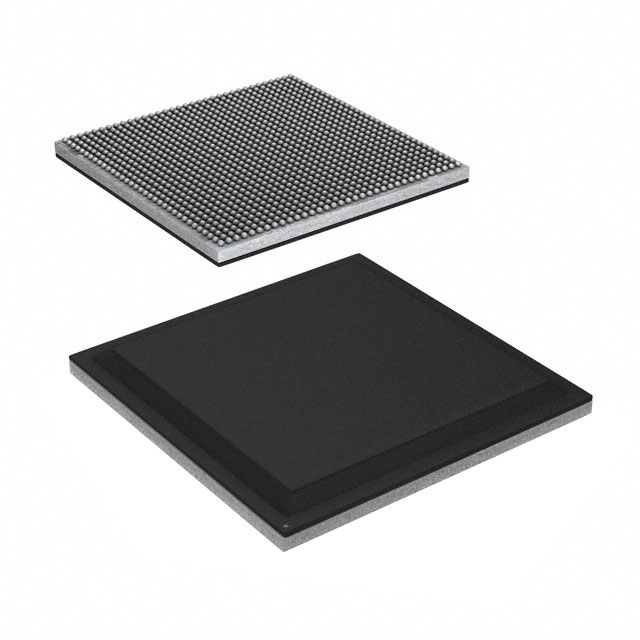

XCZU9EG-1FFVB1156E
IC SOC CORTEX-A53 1156FCBGAManufacturer: AMD
Categories: System On Chip (SoC)
Quality Control: Learn More
AMD Zynq® UltraScale+™ MPSoC EG XCZU9EG-1FFVB1156E is a System On Chip (SoC) featuring a heterogeneous multi-processing architecture. This device integrates a Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM® Cortex™-R5 with CoreSight™, and an ARM Mali™-400 MP2 graphics processing unit. The Zynq® UltraScale+™ FPGA fabric offers over 599K logic cells. Clock speeds are available at 500MHz, 600MHz, and 1.2GHz. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. Peripherals include DMA and WDT. This component is housed in an 1156-FCBGA (35x35) package and operates within a junction temperature range of 0°C to 100°C. It finds application in industries such as aerospace and defense, automotive, and industrial automation.
Additional Information
Series: Zynq® UltraScale+™ MPSoC EGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1156-BBGA, FCBGA |
| Speed | 500MHz, 600MHz, 1.2GHz |
| RAM Size | 256KB |
| Operating Temperature | 0°C ~ 100°C (TJ) |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, ARM Mali™-400 MP |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 599K+ Logic Cells |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, WDT |
| Supplier Device Package | 1156-FCBGA (35x35) |
| Architecture | MCU, FPGA |
| Flash Size | - |
