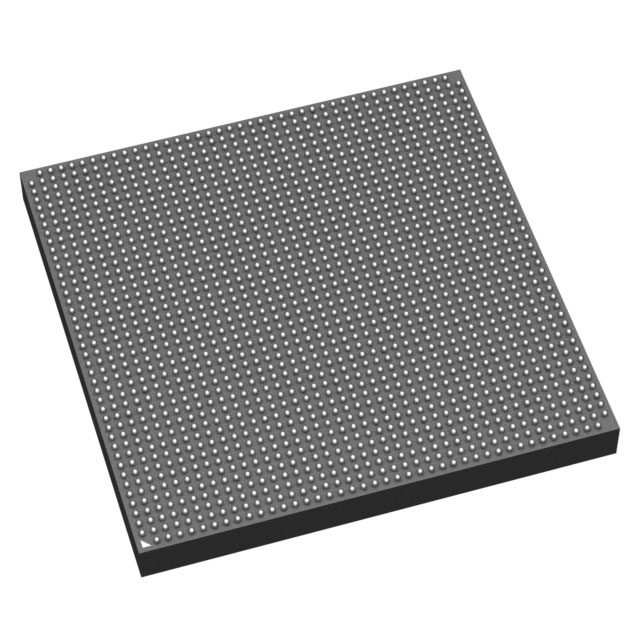

XCZU46DR-1FSVH1760E
IC ZUP RFSOC A53 FPGA 1760BGAManufacturer: AMD
Categories: System On Chip (SoC)
Quality Control: Learn More
The AMD Zynq® UltraScale+™ RFSoC XCZU46DR-1FSVH1760E is a System on Chip (SoC) integrating a Zynq® UltraScale+™ FPGA with 930K+ logic cells. This device features a Quad ARM® Cortex®-A53 MPCore™ processor with CoreSight™ and Dual ARM® Cortex™-R5 processors with CoreSight™. The clock speeds reach 500MHz for the Cortex-A53 cores and 1.2GHz for the Cortex-R5 cores. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. On-chip peripherals include DDR memory controllers and DMA, along with PCIe. The component is housed in a 1760-FCBGA package and operates within a junction temperature range of 0°C to 100°C. This RFSoC is designed for applications in telecommunications, aerospace and defense, and advanced instrumentation.
Additional Information
Series: Zynq® UltraScale+™ RFSoCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1760-BBGA, FCBGA |
| Speed | 500MHz, 1.2GHz |
| RAM Size | 256KB |
| Operating Temperature | 0°C ~ 100°C (TJ) |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DDR, DMA, PCIe |
| Supplier Device Package | 1760-FCBGA (42.5x42.5) |
| Architecture | MCU, FPGA |
| Flash Size | - |
