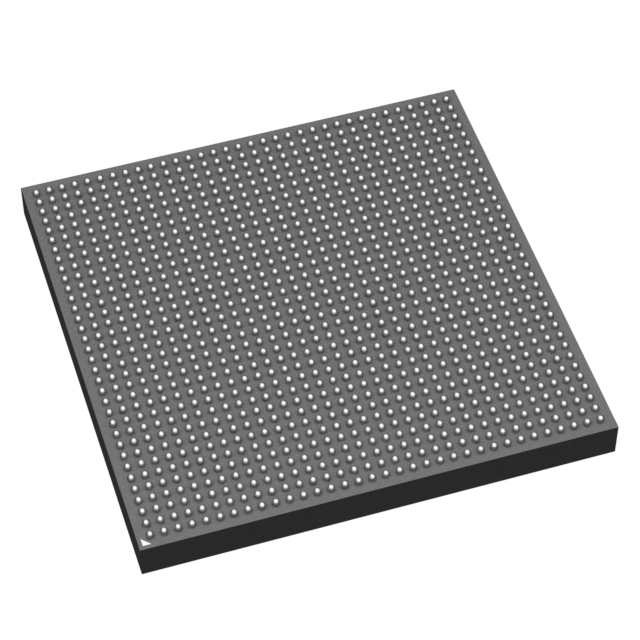

XCZU43DR-L1FFVE1156I
IC ZUP RFSOC A53 FPGA LP 1156BGAManufacturer: AMD
Categories: System On Chip (SoC)
Quality Control: Learn More
The AMD Zynq® UltraScale+™ RFSoC XCZU43DR-L1FFVE1156I is a System on Chip (SoC) integrating a Zynq® UltraScale+™ FPGA with heterogeneous processing. This device features a Quad ARM® Cortex®-A53 MPCore™ processor and Dual ARM® Cortex™-R5 processors, both with CoreSight™. The FPGA fabric offers over 930,000 logic cells, operating at speeds up to 500MHz for the Cortex-A53 cores and 1.2GHz. Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. Peripherals such as DDR, DMA, and PCIe are also integrated. This component is suitable for demanding applications in aerospace and defense, test and measurement, and wireless communications. It is supplied in an 1156-FCBGA (35x35) package and operates within an industrial temperature range of -40°C to 100°C (TJ).
Additional Information
Series: Zynq® UltraScale+™ RFSoCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1156-BBGA, FCBGA |
| Speed | 500MHz, 1.2GHz |
| RAM Size | 256KB |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DDR, DMA, PCIe |
| Supplier Device Package | 1156-FCBGA (35x35) |
| Architecture | MCU, FPGA |
| Flash Size | - |
