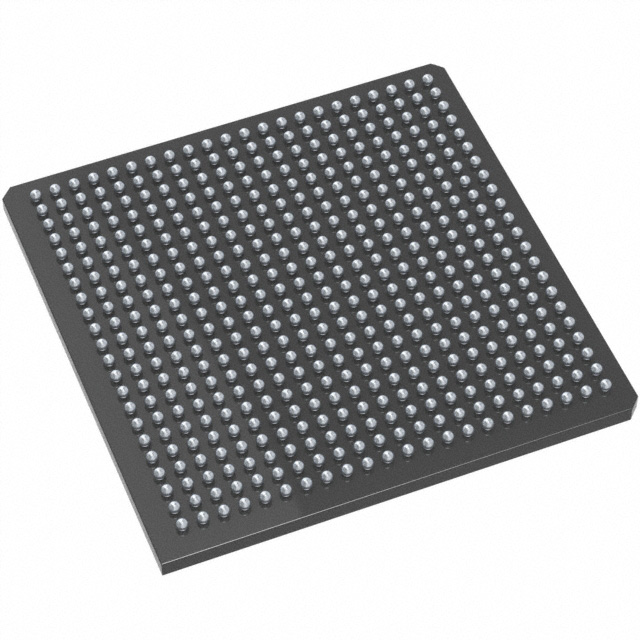

XCZU2CG-1SBVA484E
IC SOC CORTEX-A53 484FCBGAManufacturer: AMD
Categories: System On Chip (SoC)
Quality Control: Learn More
The AMD Zynq® UltraScale+™ MPSoC CG series device, part number XCZU2CG-1SBVA484E, is a System on Chip (SoC) integrating dual ARM® Cortex®-A53 MPCore™ processors with CoreSight™ and dual ARM® Cortex™-R5 processors with CoreSight™. This component features Zynq® UltraScale+™ FPGA fabric offering over 103K logic cells. It operates at speeds up to 1.2GHz for the application processors and 500MHz for the real-time processors. The device is housed in a 484-FCBGA (19x19) package and supports extensive connectivity options including CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. Peripherals include DMA and WDT. This device is suitable for applications in industrial automation, automotive, and medical imaging. It operates within a temperature range of 0°C to 100°C (TJ).
Additional Information
Series: Zynq® UltraScale+™ MPSoC CGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 484-BFBGA, FCBGA |
| Speed | 500MHz, 1.2GHz |
| RAM Size | 256KB |
| Operating Temperature | 0°C ~ 100°C (TJ) |
| Core Processor | Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 103K+ Logic Cells |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, WDT |
| Supplier Device Package | 484-FCBGA (19x19) |
| Architecture | MCU, FPGA |
| Flash Size | - |
