XCVM1802-1LSIVFVC1760
IC VERSAL AICORE FPGA 1760BGAManufacturer: AMD
Categories: System On Chip (SoC)
Quality Control: Learn More

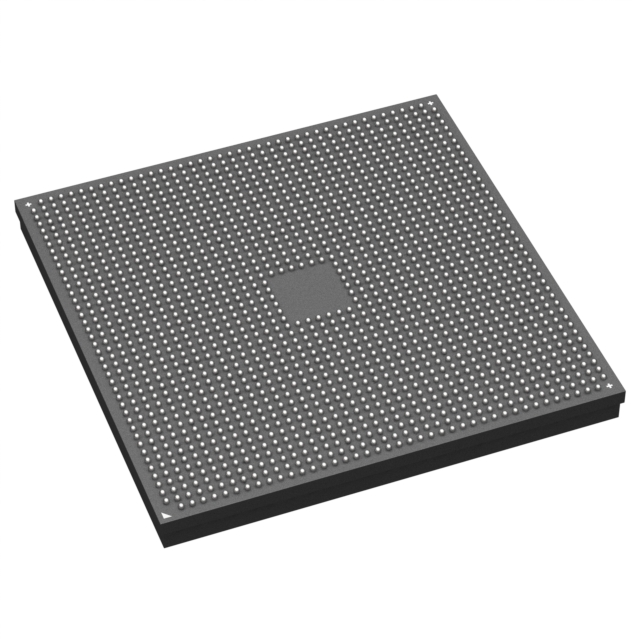

The AMD Versal™ Prime XCVM1802-1LSIVFVC1760 is a System on Chip (SoC) device featuring a Versal™ Prime FPGA architecture. This component integrates dual ARM® Cortex®-A72 MPCore™ processors with CoreSight™ and dual ARM® Cortex™-R5F processors with CoreSight™. It offers 1.9 million logic cells and operates at clock speeds of 400MHz and 1GHz. The device supports a range of connectivity options including CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. Peripherals such as DDR, DMA, and PCIe are also included. Supplied in a 1760-FCBGA (40x40) package, this component is designed for operation within an industrial temperature range of -40°C to 100°C (TJ). This SoC is suitable for applications in aerospace and defense, automotive, industrial, and wired and wireless communications sectors.
Additional Information
Series: Versal™ PrimeRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1760-BFBGA, FCBGA |
| Speed | 400MHz, 1GHz |
| RAM Size | 256KB |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Core Processor | Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ |
| Primary Attributes | Versal™ Prime FPGA, 1.9M Logic Cells |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DDR, DMA, PCIe |
| Supplier Device Package | 1760-FCBGA (40x40) |
| Architecture | MPU, FPGA |
| Flash Size | - |
