SM-K26-XCL2GC-ED
SOM K26C VISION ZYNQ MPSOC EDManufacturer: AMD
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

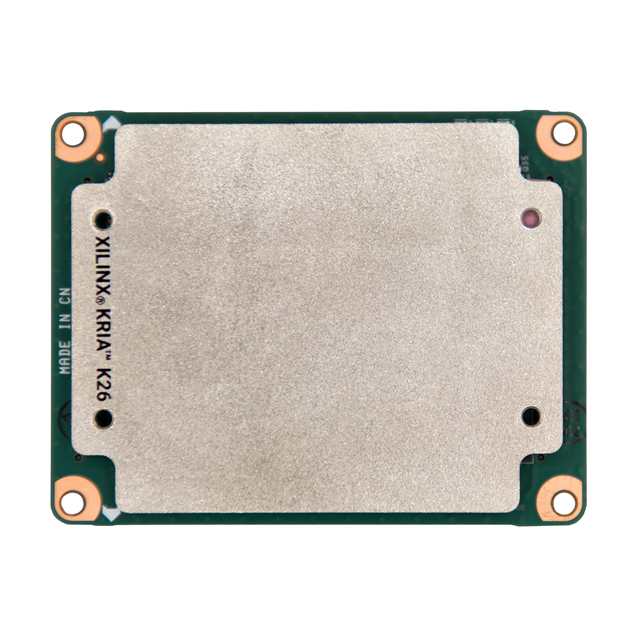

The AMD Zynq® UltraScale+™ Kria™ SM-K26-XCL2GC-ED is an embedded module featuring a heterogeneous processing system. It integrates a quad-core ARM® Cortex®-A53 processor operating at up to 1.333GHz and a dual-core ARM® Cortex®-R5F real-time processor at 533MHz. This System-on-Module (SOM) includes 4GB of DDR4 RAM and 16GB of eMMC flash storage, supplemented by 64MB of QSPI flash for boot. The SM-K26-XCL2GC-ED is designed for vision applications, leveraging its FPGA fabric for acceleration. It utilizes a 2 x 240-pin connector for system interfacing and operates within an industrial temperature range of 0°C to 85°C (TJ). The module's dimensions are 77.00mm x 60.00mm. This component is suitable for applications in industrial automation, machine vision, and embedded AI.
Additional Information
Series: Zynq® UltraScale+™ Kria™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | 2 x 240 Pin |
| Size / Dimension | 3.030"" L x 2.360"" W (77.00mm x 60.00mm) |
| Speed | 533MHz, 1.333GHz |
| RAM Size | 4GB |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Module/Board Type | FPGA Core |
| Core Processor | ARM® Cortex®-A53 |
| Co-Processor | ARM® Cortex®-R5F |
| Flash Size | 16GB eMMC, 64MB QSPI |
