XC2C64A-5QFG48C
IC CPLD 64MC 4.6NS 48QFNManufacturer: AMD
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More

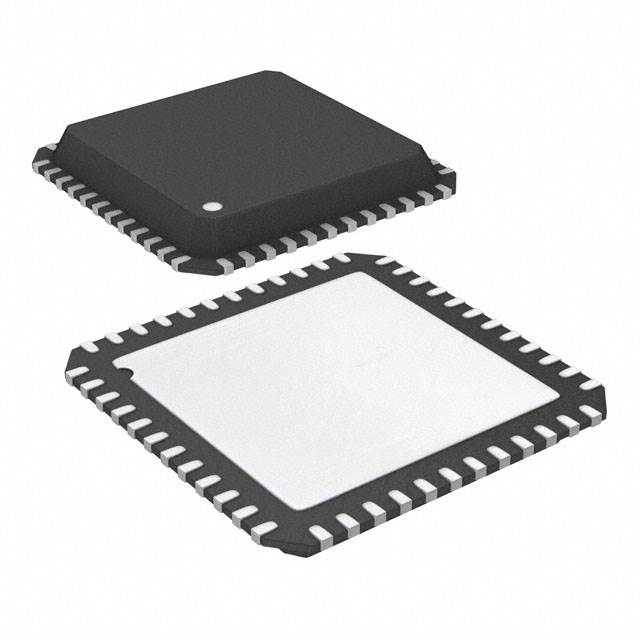

The AMD CoolRunner II XC2C64A-5QFG48C is a 64-macrocell CPLD offering 1500 gates and 37 I/O pins. This device features a maximum propagation delay of 4.6 ns, supporting efficient high-speed logic implementation. Designed for in-system programmability, it utilizes a 48-QFN (7x7) package with an exposed pad for enhanced thermal performance, suitable for surface mounting. The internal supply voltage operates between 1.7V and 1.9V. The XC2C64A-5QFG48C is commonly employed in industrial automation, telecommunications infrastructure, and consumer electronics applications requiring flexible, high-performance digital logic solutions.
Additional Information
Series: CoolRunner IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable |
| Number of Gates | 1500 |
| Number of Macrocells | 64 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Delay Time tpd(1) Max | 4.6 ns |
| Supplier Device Package | 48-QFN (7x7) |
| Number of Logic Elements/Blocks | 4 |
| Voltage Supply - Internal | 1.7V ~ 1.9V |
| Number of I/O | 37 |
| Programmable | Not Verified |
