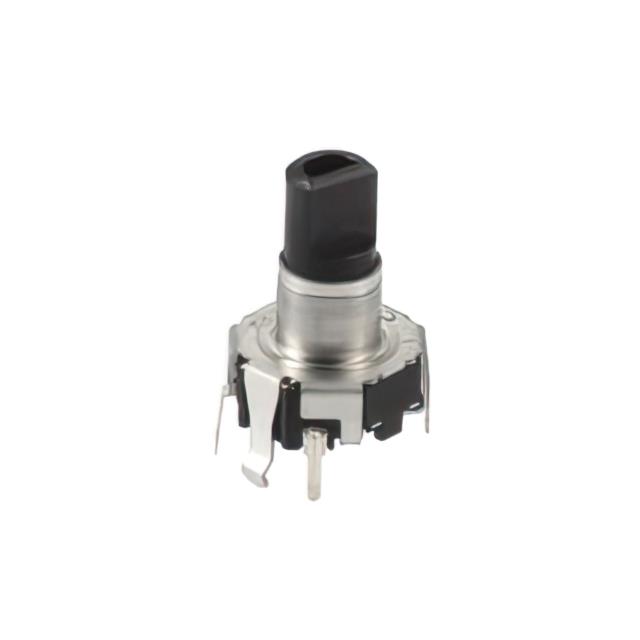

EC12D1564402
INSULATED SHAFT ENCODERSManufacturer: Alps Alpine
Categories: Encoders
Quality Control: Learn More
Rotary Encoder Incremental 15 Quadrature (Incremental) Vertical
Additional Information
Series: EC12DRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Encoder Type | Incremental |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Actuator Type | 12mm Dia Knurled End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | - |
