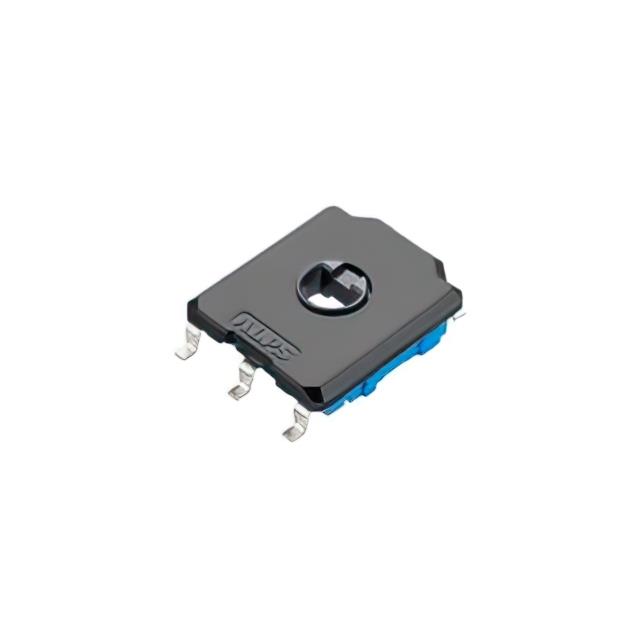

RDC9010007
RESISTIVE POSITION SENSORS ROTARManufacturer: Alps Alpine
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Resistive Sensor Rotary Position Hole for Shaft SMD (SMT) Tab
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 120°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 5V |
| Linearity | ±3% |
| Linear Range | - |
| Actuator Type | Hole for Shaft |
| Technology | Resistive |
| Resistance Tolerance | ±30% |
| For Measuring | Rotary Position |
| Supplier Device Package | 4-SMD |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Resistance | 10 kOhms |
| Programmable | - |
Request a Quote
