AOT15B65MQ1
IGBT 15AManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single IGBTs
Quality Control: Learn More

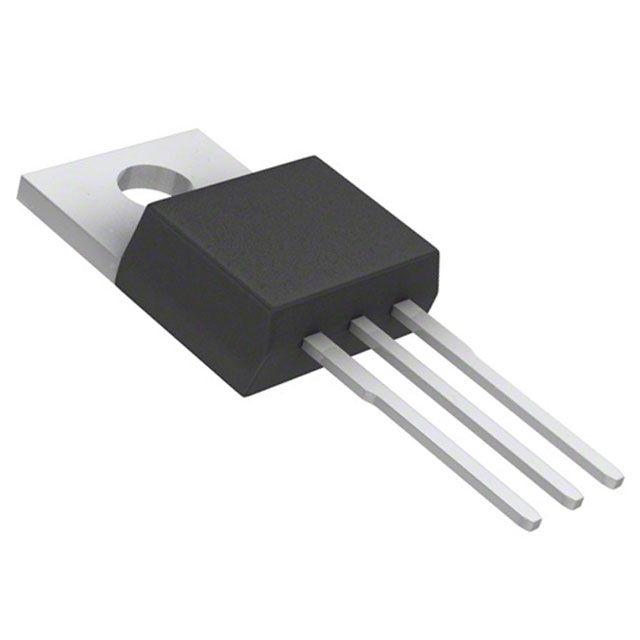

The Alpha & Omega Semiconductor Inc. AlphaIGBT™ AOT15B65MQ1 is a 650V N-channel Insulated Gate Bipolar Transistor. This component features a continuous collector current rating of 30A and a pulsed collector current of 45A, with a maximum power dissipation of 214W. The ON-state voltage drop is specified at 2.15V at 15V gate-emitter voltage and 15A collector current. Typical switching characteristics include turn-on delay of 15ns and turn-off delay of 94ns at 25°C, with a reverse recovery time of 106ns. The gate charge is 32nC. This component is housed in a TO-220-3 package suitable for through-hole mounting and offers an extended operating temperature range from -55°C to 175°C. It is supplied in Tape & Reel (TR) packaging. This device is commonly utilized in power factor correction (PFC) circuits and general-purpose switching applications across industrial and automotive sectors.
Additional Information
Series: AlphaIGBT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 106 ns |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 15A |
| Supplier Device Package | TO-220 |
| IGBT Type | - |
| Td (on/off) @ 25°C | 15ns/94ns |
| Switching Energy | 290µJ (on), 200µJ (off) |
| Test Condition | 400V, 15A, 20Ohm, 15V |
| Gate Charge | 32 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 45 A |
| Power - Max | 214 W |
