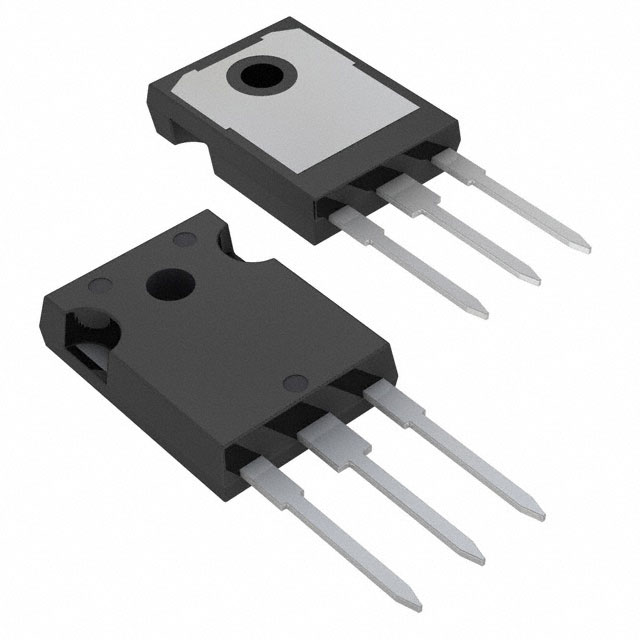

AOK40B120P1
IGBT 40AManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single IGBTs
Quality Control: Learn More
IGBT 1200 V 80 A 600 W Through Hole TO-247
Additional Information
Series: AlphaIGBT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 40A |
| Supplier Device Package | TO-247 |
| IGBT Type | - |
| Td (on/off) @ 25°C | 53ns/210ns |
| Switching Energy | 2.5mJ (on), 1.3mJ (off) |
| Test Condition | 600V, 40A, 7.5Ohm, 15V |
| Gate Charge | 202 nC |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 160 A |
| Power - Max | 600 W |
Request a Quote
