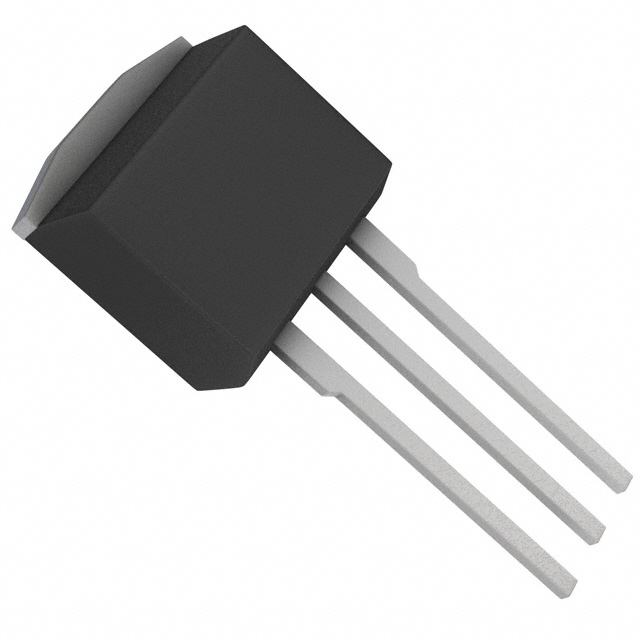

AOW2500
MOSFET N-CH 150V 11.5/152A TO262Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 150 V 11.5A (Ta), 152A (Tc) 2.1W (Ta), 375W (Tc) Through Hole TO-262
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta), 152A (Tc) |
| Rds On (Max) @ Id, Vgs | 6.2mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 375W (Tc) |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Supplier Device Package | TO-262 |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 136 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6460 pF @ 75 V |
