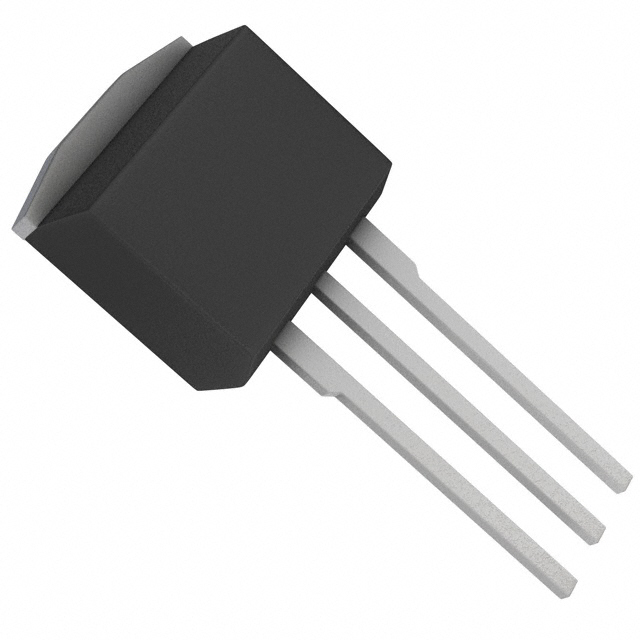

AOW190A60C
MOSFET N-CH 600V 20A TO262Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 20A (Tc) 208W (Tc) Through Hole TO-262
Additional Information
Series: aMOS5™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 7.6A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 208W (Tc) |
| Vgs(th) (Max) @ Id | 4.6V @ 250µA |
| Supplier Device Package | TO-262 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1935 pF @ 100 V |
Request a Quote
