AOU4N60
MOSFET N-CH 600V 4A TO251-3Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AOU4N60 is an N-Channel Power MOSFET designed for high-voltage applications. This component features a 600V drain-source voltage (Vdss) and a continuous drain current (Id) of 4A at 25°C. With a maximum on-resistance (Rds On) of 2.3 Ohms at 2A and 10V gate-source voltage (Vgs), it offers efficient switching performance. The device has a maximum power dissipation of 104W (Tc) and is housed in a TO-251-3 (IPAK) package with through-hole mounting. Key parameters include a gate charge (Qg) of 14.5 nC (max) at 10V and input capacitance (Ciss) of 640 pF (max) at 25V. The operating temperature range is -50°C to 150°C (TJ). This MOSFET is suitable for use in power supply units, lighting, and industrial motor control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

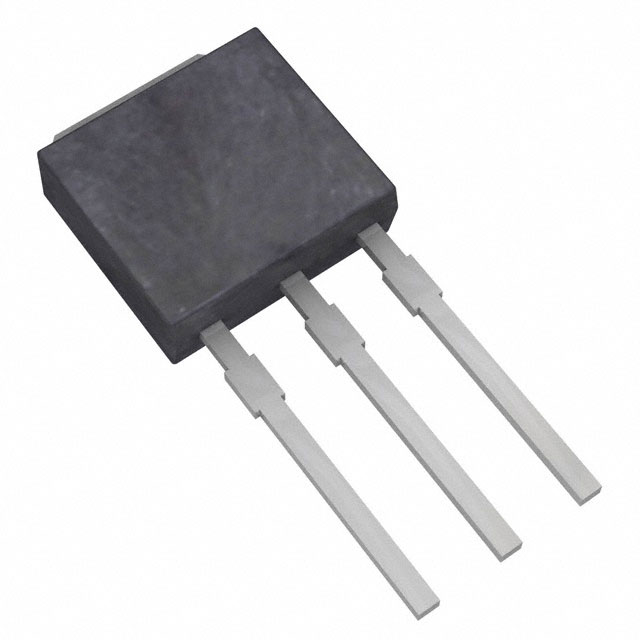

| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.3Ohm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 104W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Supplier Device Package | TO-251-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 14.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 640 pF @ 25 V |
