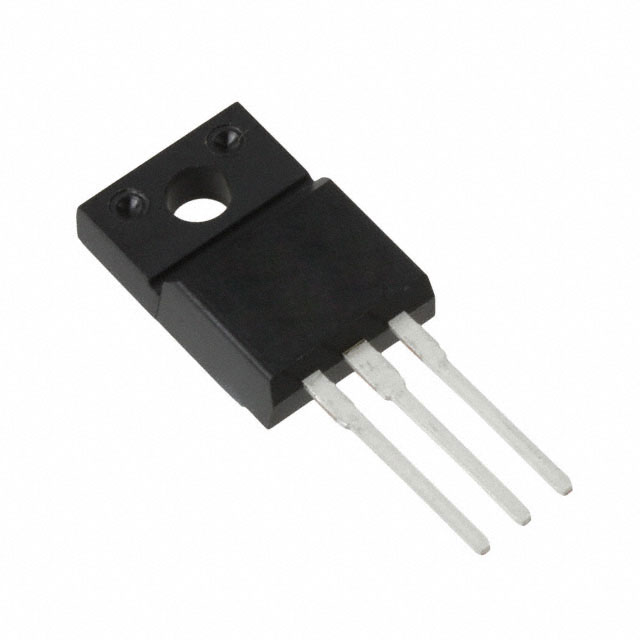

AOTF409
MOSFET P-CH 60V 5.4A/24A TO220FLManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 60 V 5.4A (Ta), 24A (Tc) 2.16W (Ta), 43W (Tc) Through Hole TO-220FL
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Ta), 24A (Tc) |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.16W (Ta), 43W (Tc) |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Supplier Device Package | TO-220FL |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2953 pF @ 30 V |
