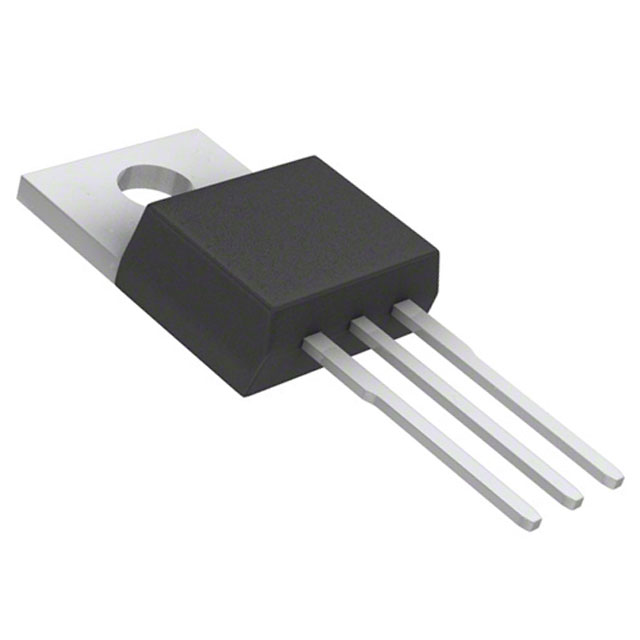

AOT380A60L
MOSFET N-CH 600V 11A TO220Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. aMOS5™ N-Channel Power MOSFET, part number AOT380A60L, offers a 600V drain-source breakdown voltage and 11A continuous drain current at 25°C. This through-hole TO-220 packaged device features a maximum on-resistance of 380mOhm at 5.5A and 10V gate-source voltage. With a maximum power dissipation of 131W (Tc) and an operating temperature range of -55°C to 150°C, the AOT380A60L is suitable for high-voltage switching applications. Key parameters include a gate charge of 20 nC at 10V and input capacitance of 955 pF at 100V. This component finds application in power supply units and industrial motor control systems.
Additional Information
Series: aMOS5™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Rds On (Max) @ Id, Vgs | 380mOhm @ 5.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 131W (Tc) |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Supplier Device Package | TO-220 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 955 pF @ 100 V |
