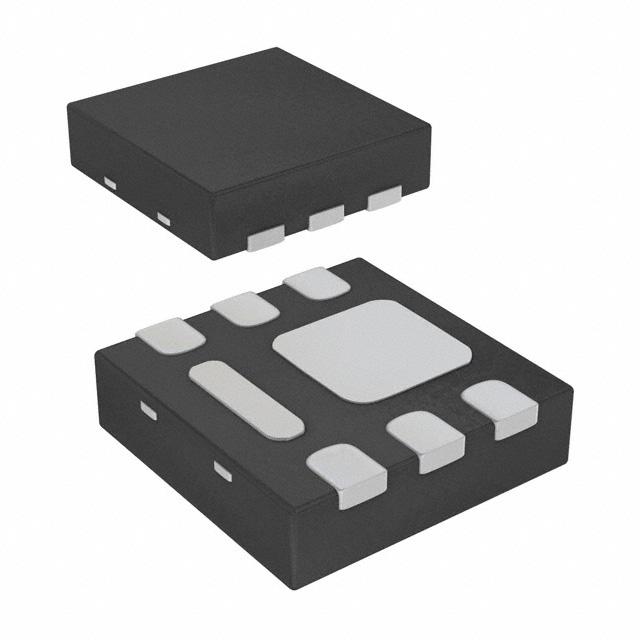

AONT21313C
MOSFET P-CH 30V 8A 6DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 8A (Ta) 2.8W (Ta) Surface Mount 6-DFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 8A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta) |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Supplier Device Package | 6-DFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 14.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 530 pF @ 15 V |
