AONR66922
MOSFET N-CH 100V 15A/50A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

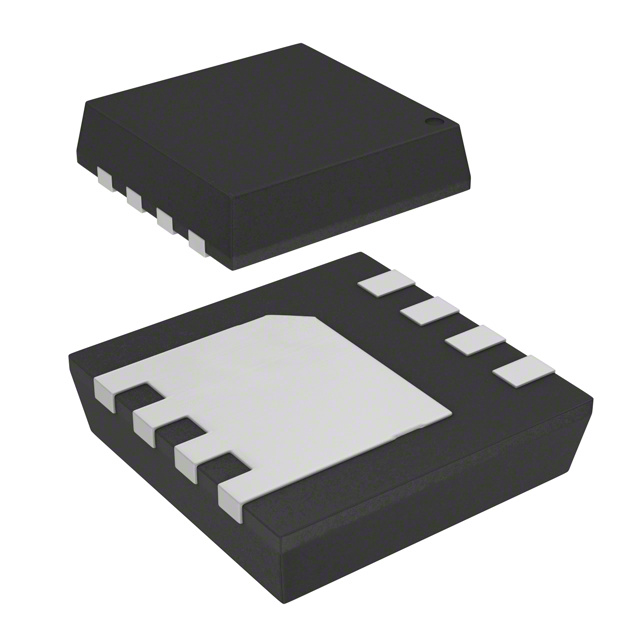

N-Channel 100 V 15A (Ta), 50A (Tc) 4.1W (Ta), 52W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)
Additional Information
Series: AlphaSGT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 50A (Tc) |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 15A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 4.1W (Ta), 52W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-DFN-EP (3.3x3.3) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2180 pF @ 50 V |
Request a Quote
