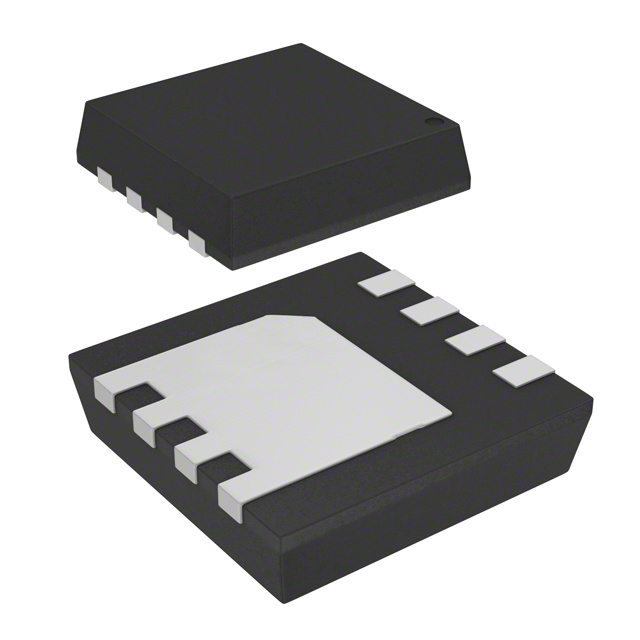

AON7421
MOSFET P-CH 20V 30A/50A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 30A (Ta), 50A (Tc) 6.2W (Ta), 83W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 50A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 6.2W (Ta), 83W (Tc) |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | 8-DFN-EP (3.3x3.3) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 114 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4550 pF @ 10 V |
