AON6440
MOSFET N-CH 40V 20A/85A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

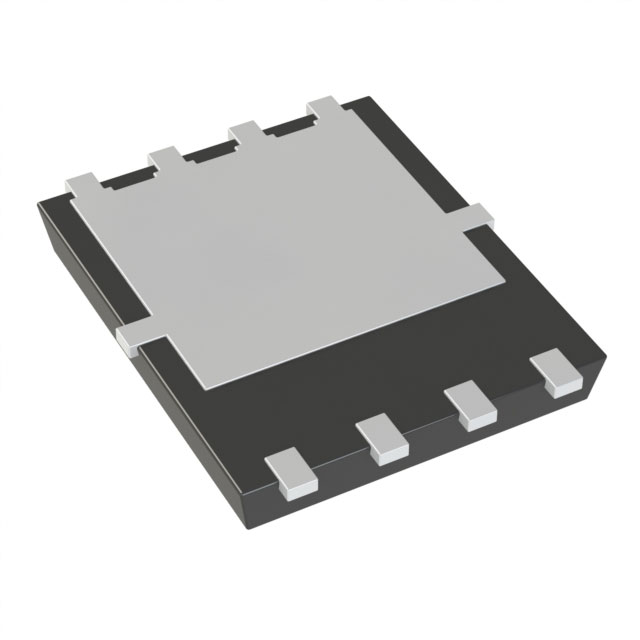

Alpha & Omega Semiconductor Inc. presents the AON6440, an N-Channel Power MOSFET from the SDMOS™ series. This component features a 40V drain-source breakdown voltage and is rated for 20A continuous drain current at ambient temperature and 85A at case temperature. With a low on-resistance of 3.4mOhm at 20A and 10V gate-source voltage, the AON6440 offers efficient power handling, dissipating up to 2.3W at ambient and 83W at case temperature. The device is housed in an 8-DFN (5x6) package, suitable for surface mounting. Key electrical parameters include a maximum gate charge (Qg) of 97 nC at 10V and an input capacitance (Ciss) of 6000 pF at 20V. Operating temperature range is -55°C to 150°C (TJ). This MOSFET is utilized in various industrial applications, including power management and switching circuits.
Additional Information
Series: SDMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 85A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 83W (Tc) |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-DFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6000 pF @ 20 V |
