AON6314
MOSFET N-CHANNEL 30V 85A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AON6314 is an N-Channel Power MOSFET designed for high-efficiency power conversion applications. This device features a 30V drain-source voltage (Vdss) and a continuous drain current (Id) of 85A at 25°C (Tc), with a maximum power dissipation of 32.5W (Tc). The AON6314 offers a low on-resistance (Rds On) of 2.8mOhm at 20A and 10V, and a gate charge (Qg) of 20 nC at 4.5V, facilitating fast switching performance.

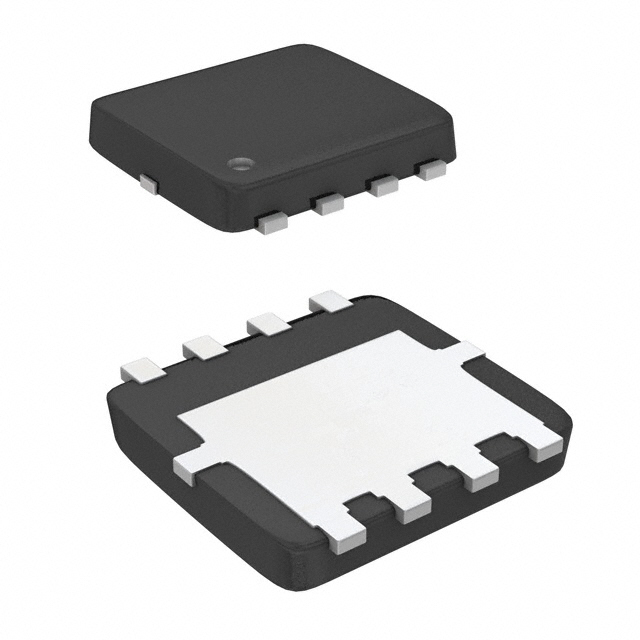

Manufactured using advanced MOSFET technology, this component is housed in an 8-DFN (5x6) package with a surface mount configuration, suitable for demanding thermal management. The operating temperature range is -55°C to 150°C (TJ). Key electrical parameters include an input capacitance (Ciss) of 1900 pF at 15V and a gate-source voltage (Vgs) range of +/-12V. The Alpha & Omega Semiconductor Inc. AON6314 is utilized in industries such as automotive, industrial power supplies, and consumer electronics, where reliable and efficient power switching is critical. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 85A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.8mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 32.5W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | 8-DFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1900 pF @ 15 V |
