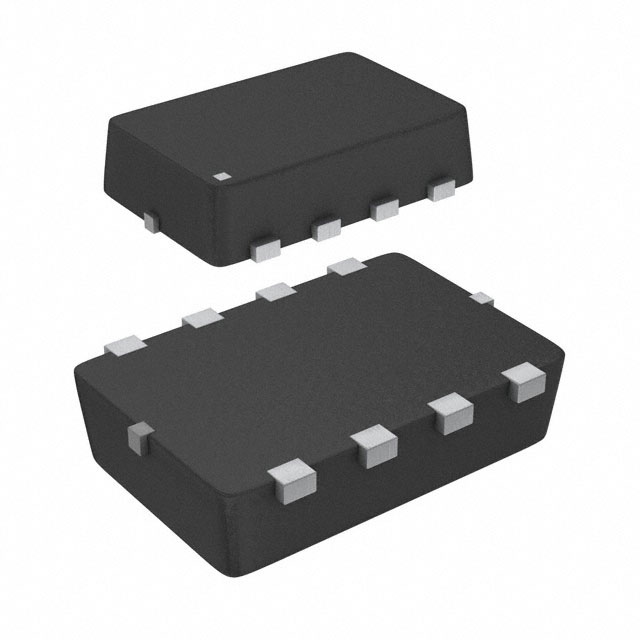

AON4420
MOSFET N-CH 30V 10A 8DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AON4420 is an N-Channel Power MOSFET designed for efficient power management. This device features a 30V drain-source voltage (Vdss) and a continuous drain current (Id) of 10A at 25°C ambient temperature. The on-resistance (Rds On) is a maximum of 20mOhm at 10A and 10V gate-source voltage. Key parameters include a gate charge (Qg) of 12 nC at 10V and input capacitance (Ciss) of 660 pF at 15V. The AON4420 is housed in an 8-DFN (3x2) surface mount package, offering a power dissipation of 1.6W. It is suitable for applications requiring robust switching performance in areas such as power supplies and motor control. The operating temperature range is -55°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-DFN (3x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 15 V |
