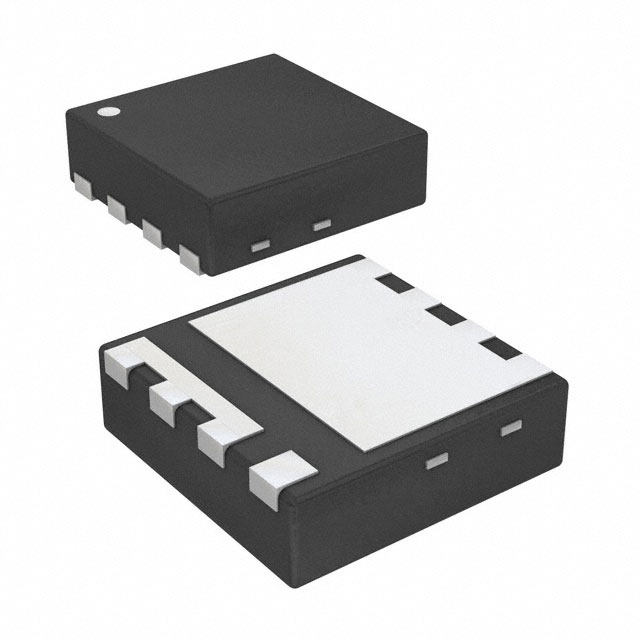

AON2411

MOSFET P-CH 12V 20A 8DFN

Manufacturer: Alpha & Omega Semiconductor Inc.

Categories: Single FETs, MOSFETs

Quality Control: Learn More

Alpha & Omega Semiconductor Inc. AON2411 is a P-Channel MOSFET designed for demanding applications. This component features a Drain-Source Voltage (Vdss) of 12V and supports a continuous drain current (Id) of 20A at 25°C. The device offers a low On-Resistance (Rds On) of 8mOhm at 12A and 4.5V, with a typical gate charge (Qg) of 30 nC at 4.5V. Input capacitance (Ciss) is rated at a maximum of 2180 pF at 6V. The AON2411 is packaged in an 8-DFN (2x2) with a 5W power dissipation capability. Operating temperature range is -55°C to 150°C (TJ). This MOSFET is suitable for use in power management, battery charging, and consumer electronics. The device is supplied in Tape & Reel (TR) packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case8-PowerWFDFN
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeP-Channel
Current - Continuous Drain (Id) @ 25°C20A (Ta)
Rds On (Max) @ Id, Vgs8mOhm @ 12A, 4.5V
FET Feature-
Power Dissipation (Max)5W (Ta)
Vgs(th) (Max) @ Id900mV @ 250µA
Supplier Device Package8-DFN (2x2)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Vgs (Max)±8V
Drain to Source Voltage (Vdss)12 V
Gate Charge (Qg) (Max) @ Vgs30 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds2180 pF @ 6 V
