AON2290
MOSFET N CH 100V 4.5A DFN 2X2BManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 4.5A (Ta) 2.8W (Ta) Surface Mount 6-DFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |

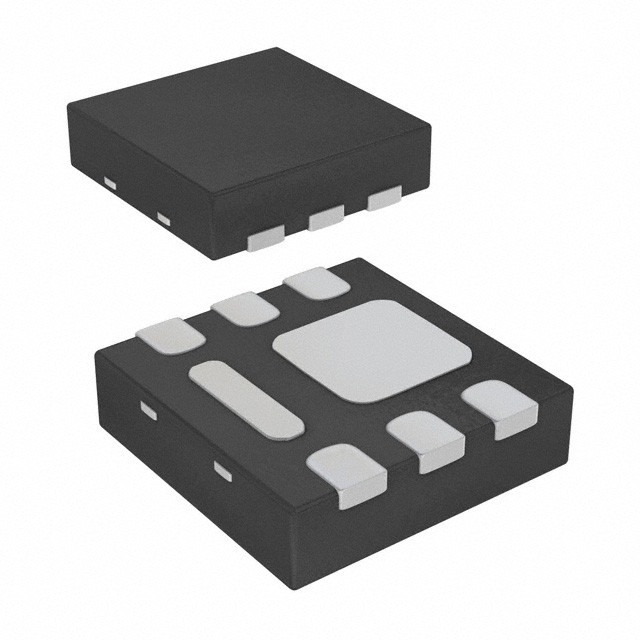

| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 72mOhm @ 4.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta) |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Supplier Device Package | 6-DFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 415 pF @ 50 V |
