AON1634
MOSFET N-CH 30V 4A 6DFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

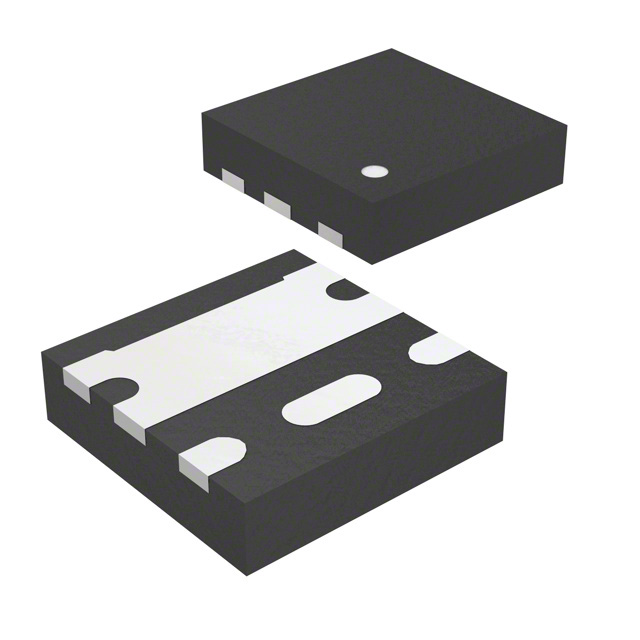

The Alpha & Omega Semiconductor Inc. AON1634 is an N-Channel Power MOSFET designed for efficient power management applications. This device features a 30V drain-source voltage (Vdss) and a continuous drain current (Id) capability of 4A at 25°C. The AON1634 boasts a low on-resistance (Rds On) of 54mOhm maximum at 4A and 10V gate-source voltage, contributing to minimized conduction losses. With a maximum power dissipation of 1.8W, it is suitable for thermal management considerations. The MOSFET is housed in a compact 6-DFN (1.6x1.6) package, facilitating high-density board designs. Key electrical parameters include a maximum gate charge (Qg) of 10 nC at 10V and input capacitance (Ciss) of 245 pF maximum at 15V. The threshold voltage (Vgs(th)) is 1.5V maximum at 250µA, and it supports a gate-source voltage range of up to ±12V. Operating across a temperature range of -55°C to 150°C, this MOSFET finds application in various sectors including consumer electronics and industrial automation. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-PowerUFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 54mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | 6-DFN (1.6x1.6) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 245 pF @ 15 V |
