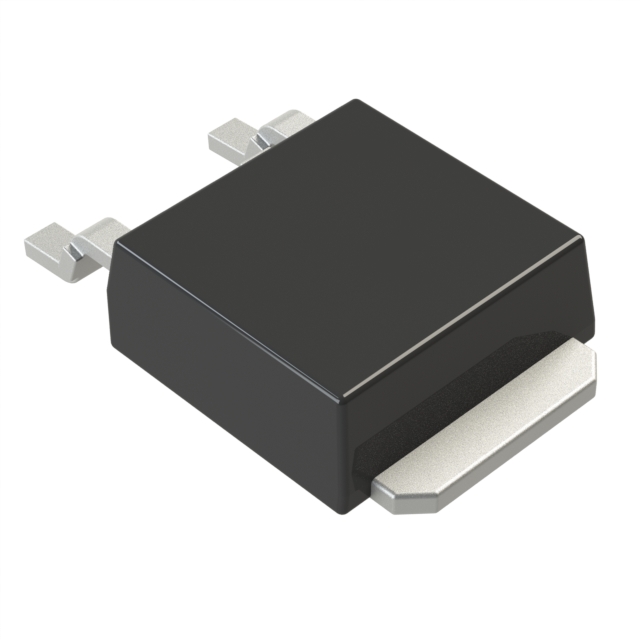

AOD2544
MOSFET N-CH 150V 6.5A/23A TO252Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 150 V 6.5A (Ta), 23A (Tc) 6.2W (Ta), 75W (Tc) Surface Mount TO-252 (DPAK)
Additional Information
Series: AlphaMOSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Ta), 23A (Tc) |
| Rds On (Max) @ Id, Vgs | 54mOhm @ 5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 6.2W (Ta), 75W (Tc) |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Supplier Device Package | TO-252 (DPAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 675 pF @ 75 V |
