AOC2411

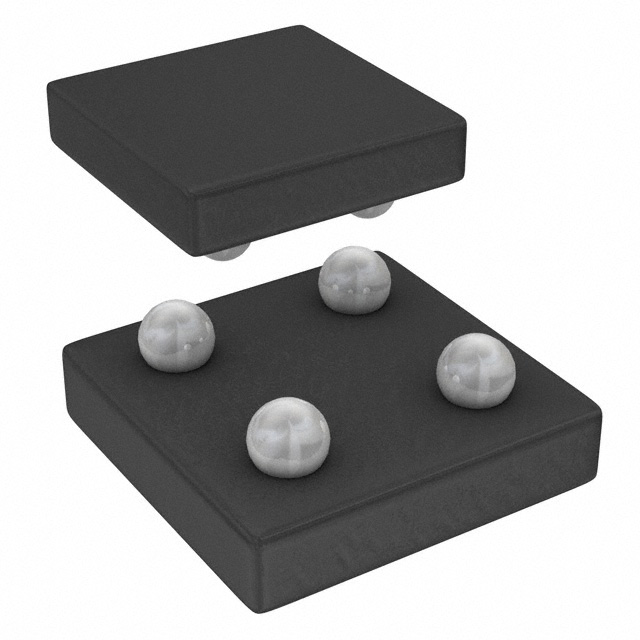

MOSFET P-CH 30V 3.4A 4WLCSPManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AOC2411 is a P-Channel MOSFET designed for high-efficiency power management applications. This device features a 30V drain-source voltage (Vdss) and a continuous drain current (Id) of 3.4A at 25°C. The AOC2411 offers a maximum Rds(on) of 45mOhm at 1A and 4.5V, with drive voltages ranging from 2.5V to 4.5V. Its low gate charge (Qg) of 20 nC at 4.5V and input capacitance (Ciss) of 1630 pF at 15V contribute to efficient switching performance. The component is housed in a compact 4-WLCSP (1.6x1.6) package, suitable for space-constrained designs and is supplied on tape and reel. With a maximum power dissipation of 800mW (Ta) and an operating temperature range of -55°C to 150°C, this MOSFET is utilized in industries such as consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 1A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta) |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Supplier Device Package | 4-WLCSP (1.6x1.6) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1630 pF @ 15 V |
