AOC2403
MOSFET P-CH 20V 1.8A 4ALPHADFNManufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

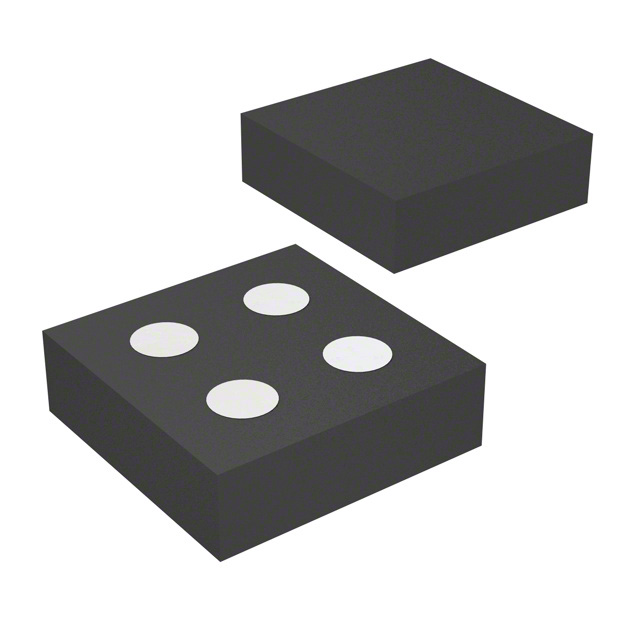

Alpha & Omega Semiconductor Inc. AOC2403, a P-Channel MOSFET, offers 20V drain-to-source voltage with a continuous drain current of 1.8A at 25°C. This device features a low Rds(on) of 95mOhm maximum at 1A, 4.5V Vgs. The AOC2403 is packaged in a compact 4-AlphaDFN (0.97x0.97) surface mount configuration, suitable for demanding applications where space is at a premium. Key parameters include a gate charge (Qg) of 4.8 nC maximum at 4.5V Vgs and input capacitance (Ciss) of 405 pF maximum at 10V Vds. Its power dissipation is rated at 450mW maximum. This component finds application in power management and switching circuits across various electronic systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.8A (Ta) |
| Rds On (Max) @ Id, Vgs | 95mOhm @ 1A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 450mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 4-AlphaDFN (0.97x0.97) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 4.8 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 405 pF @ 10 V |
