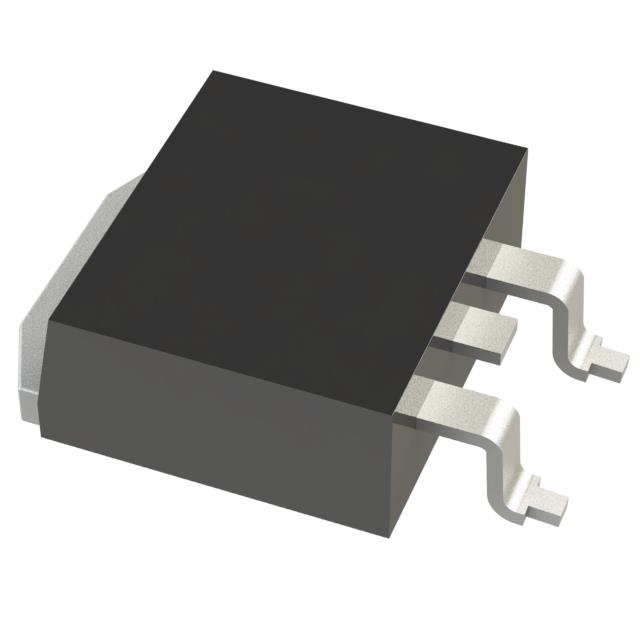

AOB290L
MOSFET N-CH 100V 18A/140A TO263Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 18A (Ta), 140A (Tc) 2.1W (Ta), 500W (Tc) Surface Mount TO-263 (D2PAK)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 18A (Ta), 140A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.2mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 500W (Tc) |
| Vgs(th) (Max) @ Id | 4.1V @ 250µA |
| Supplier Device Package | TO-263 (D2PAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 126 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 9550 pF @ 50 V |
Request a Quote
