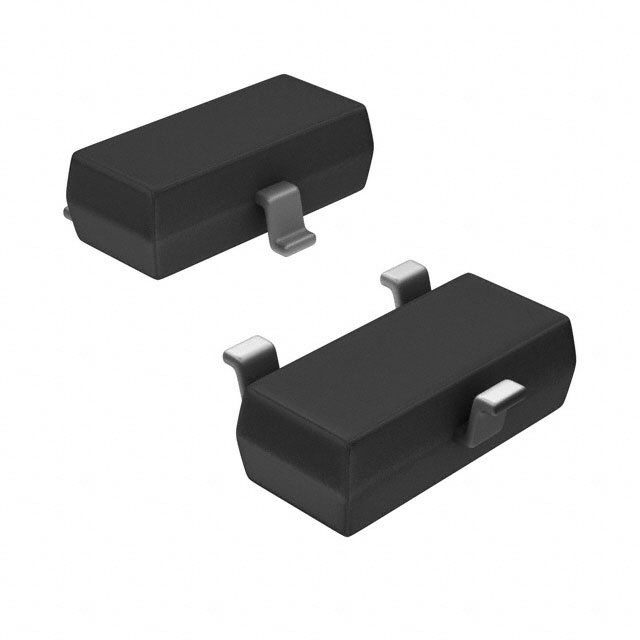

AO7407
MOSFET P-CH 20V 1.2A SC70-3Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 1.2A (Ta) 630mW (Ta) Surface Mount SC-70-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 135mOhm @ 1.2A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 630mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SC-70-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 6.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 540 pF @ 10 V |
