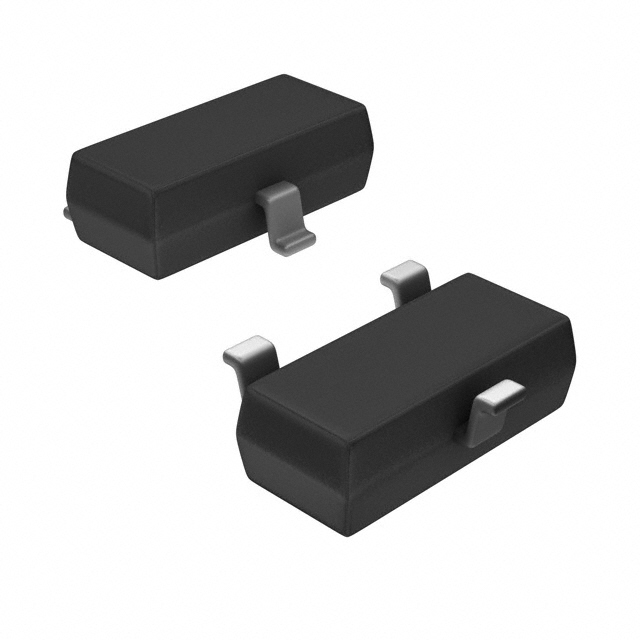

AO7401L
MOSFET P-CH 30V 1.2A SC70-3Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Alpha & Omega Semiconductor Inc. AO7401L is a P-Channel MOSFET designed for efficient power switching applications. This component features a Drain-Source Voltage (Vdss) of 30V and a continuous Drain current (Id) of 1.2A at 25°C. With a maximum On-Resistance (Rds On) of 150mOhm at 1.2A and 10V Vgs, it offers low conduction losses. The device is housed in a compact SC-70-3 surface mount package, suitable for space-constrained designs. Key electrical parameters include input capacitance (Ciss) of 409pF (max) at 15V Vds and gate charge (Qg) of 5.06nC (max) at 4.5V Vgs. This MOSFET is utilized across various industries, including consumer electronics and industrial automation. The operating temperature range is -55°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 1.2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 350mW (Ta) |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Supplier Device Package | SC-70-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.06 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 409 pF @ 15 V |
