AO5404EL
MOSFET N-CH 20V 500MA SC89-3Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

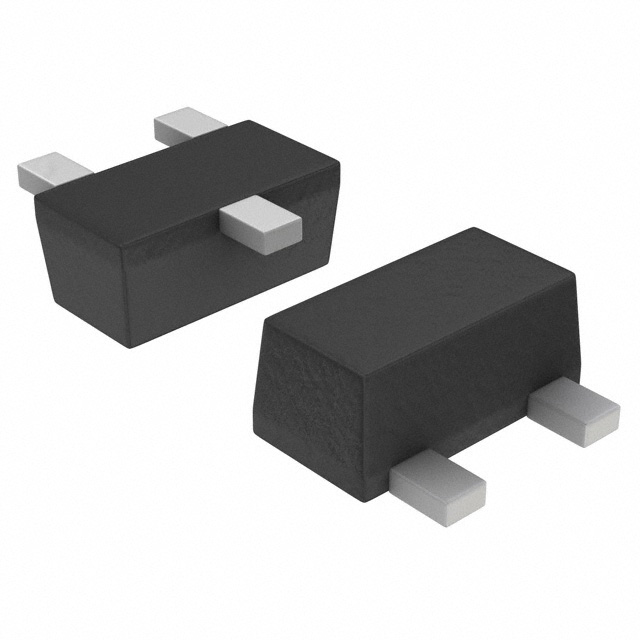

Alpha & Omega Semiconductor Inc. AO5404EL is an N-Channel Power MOSFET in an SC-89-3 package, designed for efficient switching applications. This device features a Drain-Source Voltage (Vdss) of 20V and a continuous Drain Current (Id) of 500mA at 25°C ambient. The AO5404EL offers a low On-Resistance (Rds On) of 550mOhm maximum at 500mA and 4.5V Vgs. It supports gate drive voltages from 1.8V to 4.5V for Rds On specifications and has a maximum gate-source voltage of ±8V. With a maximum power dissipation of 280mW at 25°C ambient and a junction temperature range of -55°C to 150°C, this MOSFET is suitable for use in portable electronics and power management circuits. Key electrical parameters include a maximum input capacitance (Ciss) of 45pF at 10V Vds and a typical gate charge (Qg) of 1nC at 4.5V Vgs. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 500mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 280mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SC-89-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 1 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 45 pF @ 10 V |
