AO5401E
MOSFET P-CH 20V 500MA SC89-3Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AO5401E is a P-Channel MOSFET designed for power management applications. This device features a 20V Drain-Source breakdown voltage and a continuous drain current capability of 500mA at 25°C. The AO5401E exhibits a maximum on-resistance of 800mOhm at 500mA and 4.5V Vgs. It is packaged in an SC-89-3 (SOT-490) surface-mount configuration and operates within a temperature range of -55°C to 150°C. Key parameters include an input capacitance of 100pF at 10V Vds and a maximum power dissipation of 280mW. This component is suitable for use in consumer electronics and industrial control systems. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

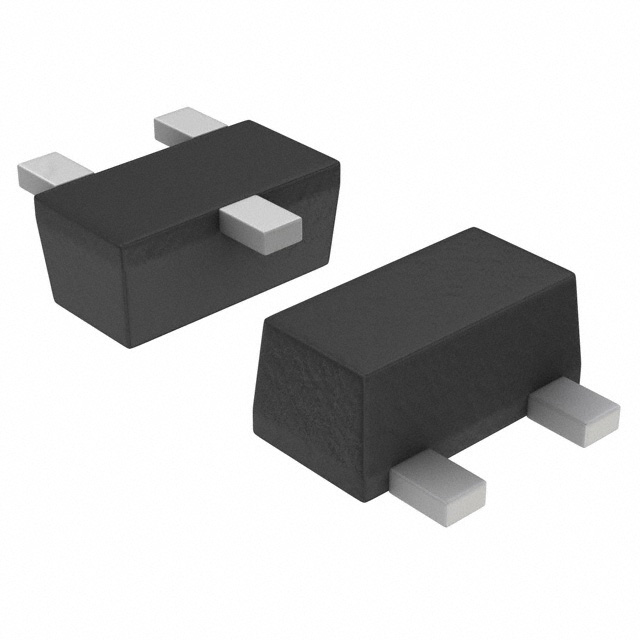

| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 500mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 280mW (Ta) |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | SC-89-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 100 pF @ 10 V |
