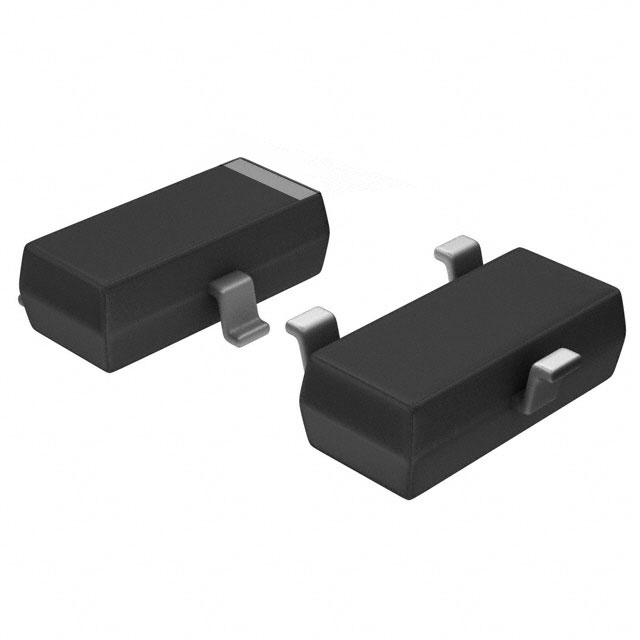

AO3419L
MOSFET P-CH 20V 3.5A SOT23-3Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The Alpha & Omega Semiconductor Inc. AO3419L is a P-Channel, 20V trench MOSFET designed for efficient power switching. This component features a continuous drain current (Id) of 3.5A at 25°C and a maximum power dissipation of 1.4W. Its low on-resistance (Rds On) is specified at 75mOhm at 3.5A and 10V, with a gate-source threshold voltage (Vgs(th)) of 1.4V at 250µA. The AO3419L operates with a maximum gate-source voltage of ±12V and supports drive voltages from 2.5V to 10V. Key electrical characteristics include input capacitance (Ciss) of 620pF at 10V and gate charge (Qg) of 6.6nC at 4.5V. This device is housed in a compact SOT-23-3 (3-SMD, SOT-23-3 Variant) package, suitable for surface mounting, and is supplied in Tape & Reel (TR) packaging. It is engineered for applications in consumer electronics and automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, SOT-23-3 Variant |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 3.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Ta) |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Supplier Device Package | SOT-23-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 6.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 620 pF @ 10 V |
