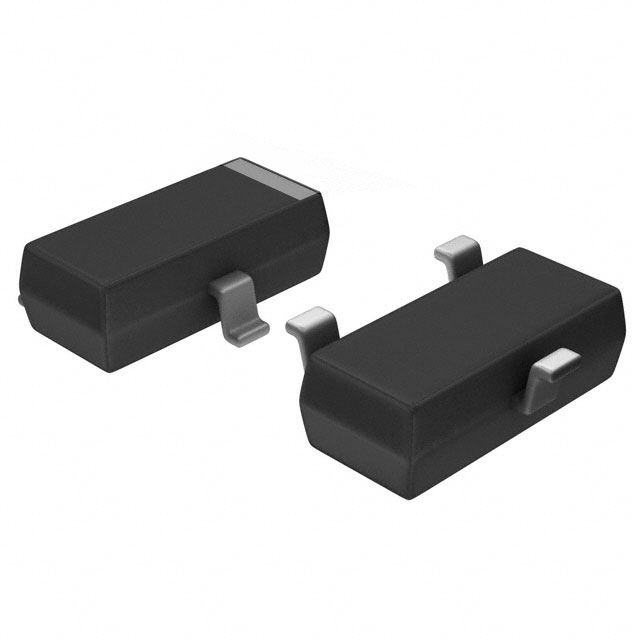

AO3160
MOSFET N-CH 600V 40MA SOT23-3Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AO3160 is an N-Channel MOSFET designed for high voltage applications. This component features a drain-source voltage (Vdss) of 600V and a continuous drain current (Id) of 40mA at 25°C ambient temperature, with a maximum power dissipation of 1.39W (Ta). The AO3160 is provided in a SOT-23A-3 surface-mount package, also known as TO-236-3 or SC-59. Key electrical characteristics include a maximum Rds On of 500 Ohms at 16mA and 10V, a gate charge (Qg) of 1.5 nC at 10V, and input capacitance (Ciss) of 15 pF at 25V. The device operates across a temperature range of -55°C to 150°C. This MOSFET is commonly utilized in power supply circuits, lighting applications, and general-purpose switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 40mA (Ta) |
| Rds On (Max) @ Id, Vgs | 500Ohm @ 16mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.39W (Ta) |
| Vgs(th) (Max) @ Id | 3.2V @ 8µA |
| Supplier Device Package | SOT-23A-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 1.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 15 pF @ 25 V |
