AIM5D05B060M1S
IPM5Manufacturer: Alpha & Omega Semiconductor Inc.
Categories: Power Driver Modules
Quality Control: Learn More
Alpha & Omega Semiconductor Inc. AIM5D05B060M1S is a high-performance 3-phase inverter power driver module. This through-hole component utilizes IGBT technology and is rated for 600V with a continuous current capability of 5A. The module is housed in a 23-PowerDIP package, measuring 19.00mm (0.748"), and offers 2000Vrms isolation voltage. Its robust design makes it suitable for applications in industrial motor control, electric vehicle powertrains, and renewable energy systems. This component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 23-PowerDIP Module (0.748"", 19.00mm) |
| Mounting Type | Through Hole |
| Type | IGBT |
| Configuration | 3 Phase Inverter |
| Voltage - Isolation | 2000Vrms |
| Current | 5 A |
| Voltage | 600 V |
Request a Quote
Clients Also Buy

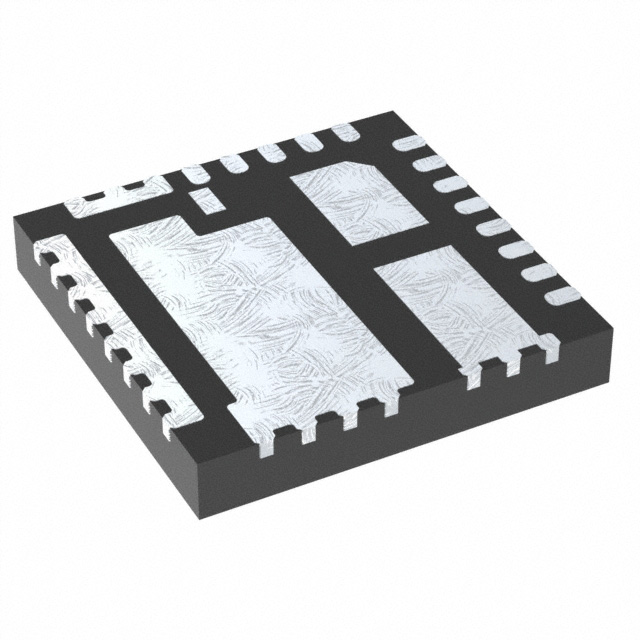

AOZ5038QI-05_3
